SHOW Metal Stents

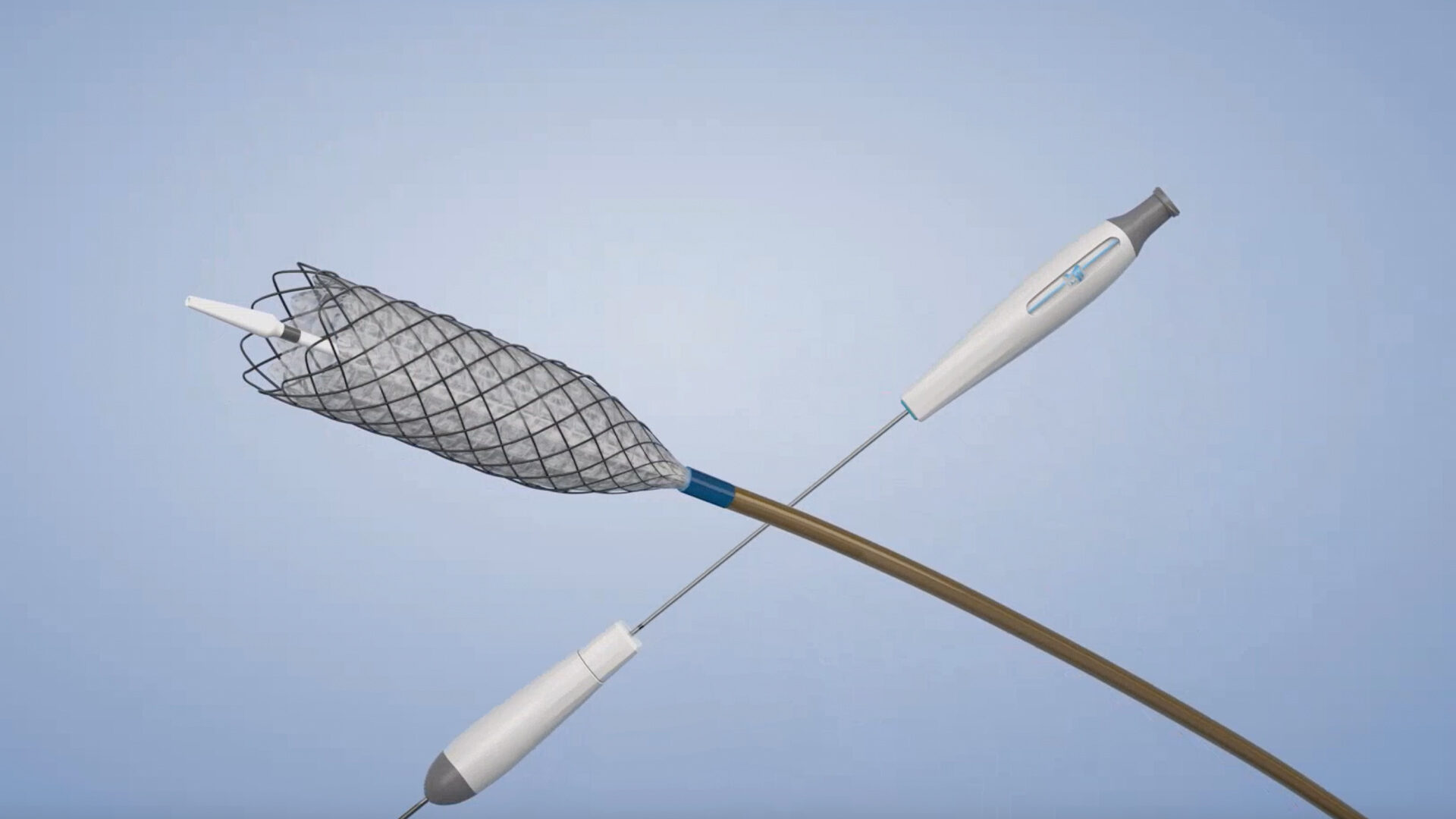

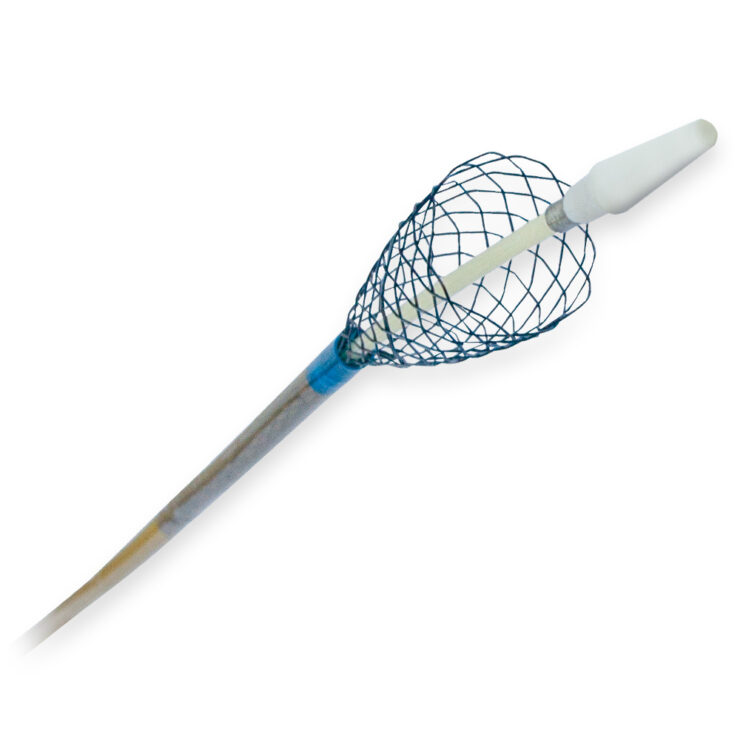

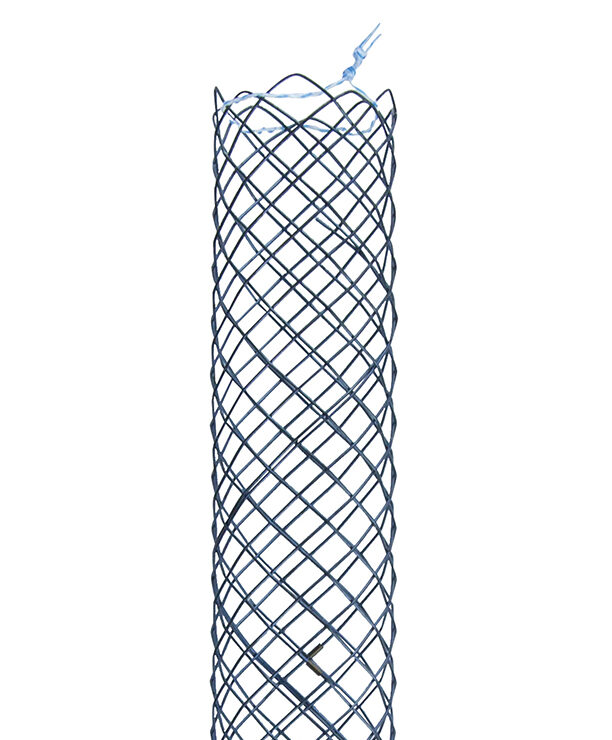

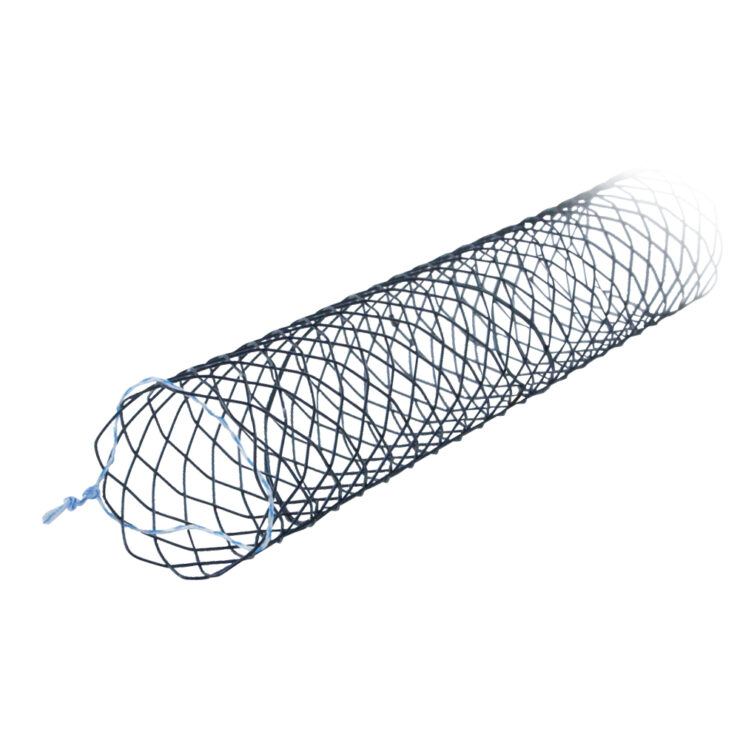

The SHOW-Metal-Stent from Micro-Tech is indicated for applications in the bile duct and is suitable for both short and long wire systems. Time-consuming preparation and irrigation is no longer necessary. Made of flexible nitinol wire, the stent is designed to adapt ideally to biliary conditions. The atraumatic stent ends are characterized by their soft edges.
Arrange a Product Trial Request a Call Back
01 / 07
Specific Characteristics

  • Short and long wire compatible
  • No preparation or flushing necessary
  • Easy handling
  • Uncovered, partially covered and fully covered
  • Available in a straight form
  • Automatic guide wire exit
  • Point-of-no-return
  • Very good visibility through tantalum markers
  • Very flexible application system facilitates the placement

Download brochure >
Order Information Delivery Information
SHOW Metal Stents

For Precise Placement

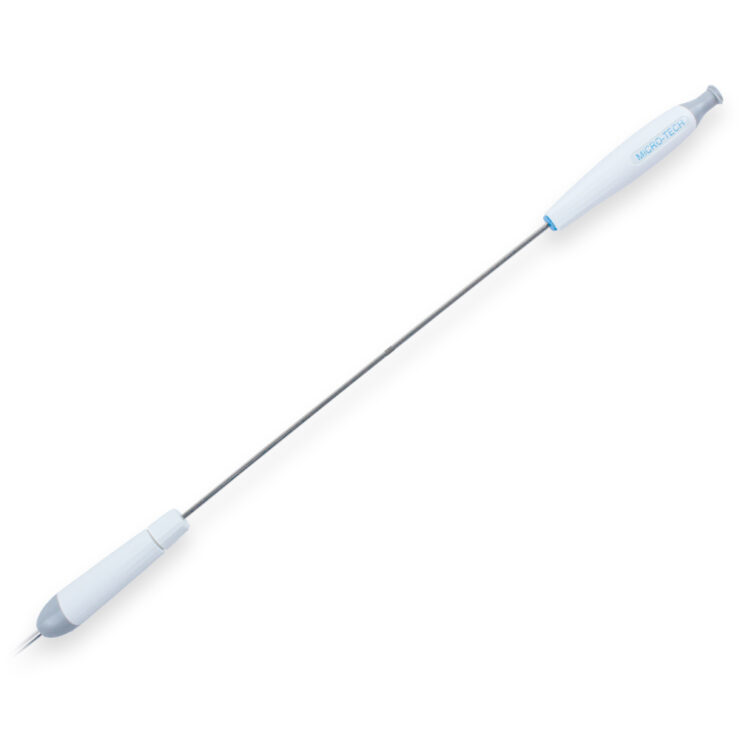

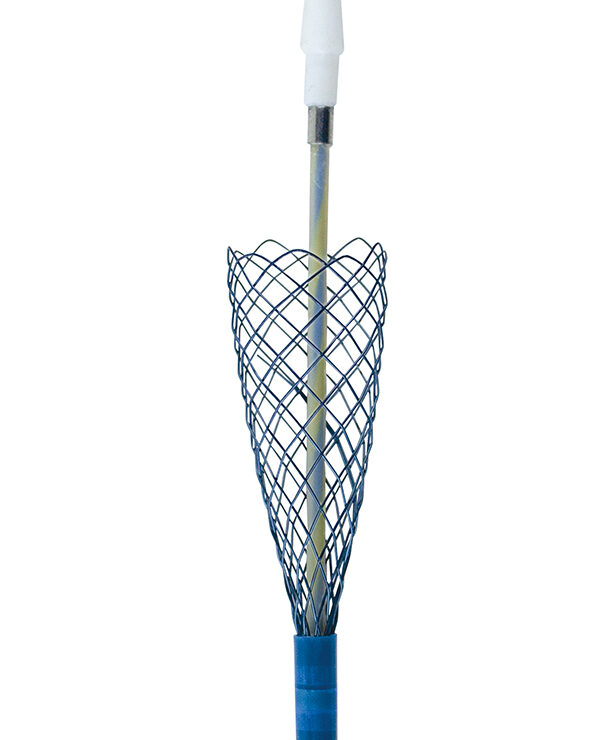

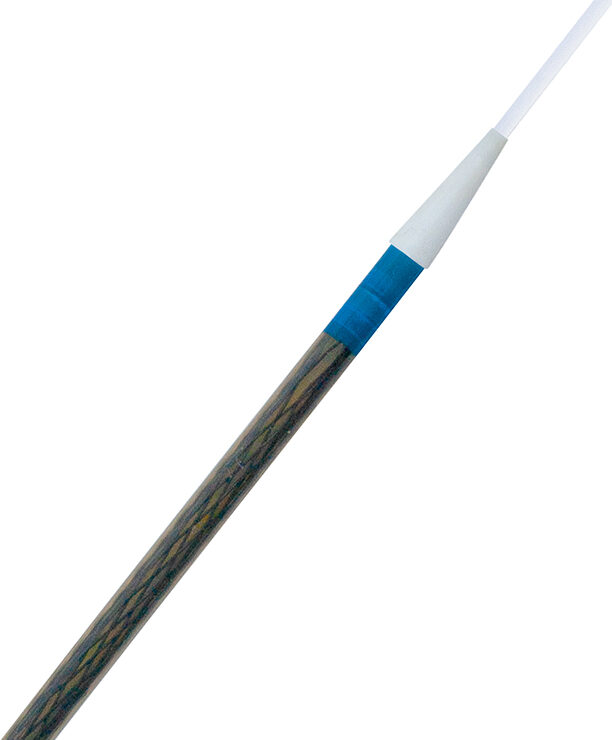

For precise placement, there are overall 10 radiopaque markers on the stent itself and three more on the introducer set. The point-of-no-return (for uncovered and partially covered stents) allows resheathing of the stent which means it can be repositioned.

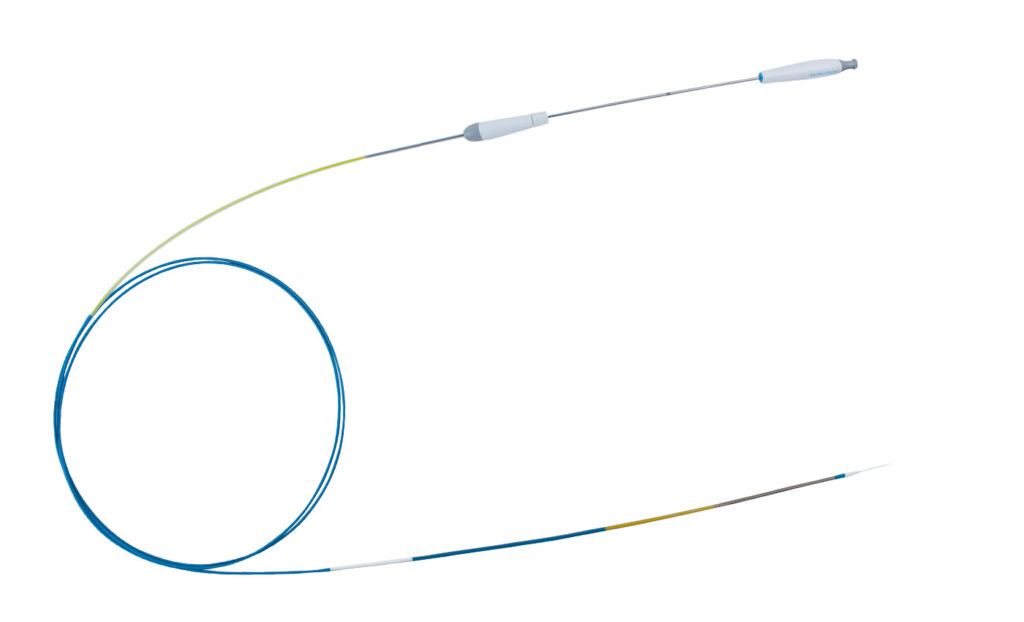

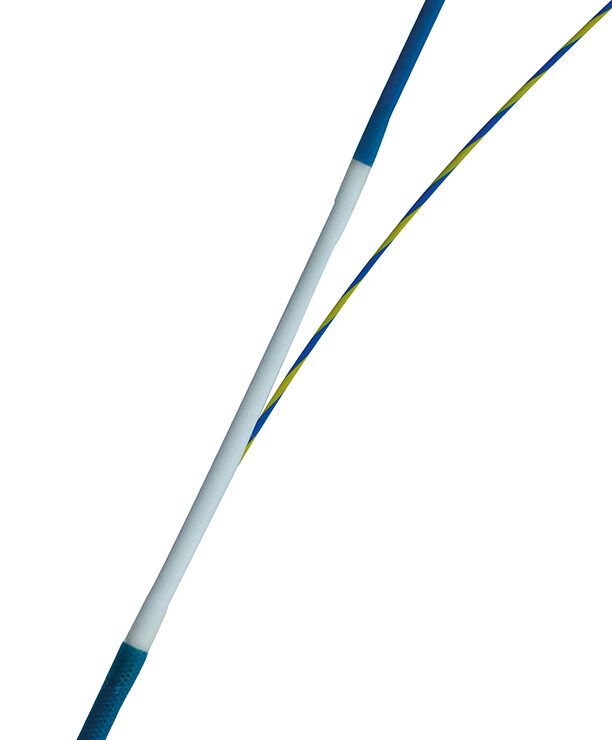

The guide wire exit is located at approx. 30 cm. Our range includes stents with four different lengths of 40 to 100 mm and thus offers for each operation the ideal solution.
Ordering Information

Show Metal Stents

Product Number Ø mm Length mm Covering mm Ø Catheter mm Working Length mm Repositionable Recommended GW inch Box Size
RST43-001-10.040 10 40 Without 2.83 1900 Yes 0.035" Each
RST43-001-10.060 10 60 Without 2.83 1900 Yes 0.035" Each
RST43-001-10.080 10 80 Without 2.83 1900 Yes 0.035" Each
RST43-001-10.100 10 100 Without 2.83 1900 Yes 0.035" Each
RST43-002-10.040 10 40 30 2.83 1900 Yes 0.035" Each
RST43-002-10.060 10 60 50 2.83 1900 Yes 0.035" Each
RST43-002-10.080 10 80 70 2.83 1900 Yes 0.035" Each
RST43-002-10.100 10 100 90 2.83 1900 Yes 0.035" Each
RST43-004-10.040 10 40 40 2.83 1900 No 0.035" Each
RST43-004-10.060 10 60 60 2.83 1900 No 0.035" Each
RST43-004-10.080 10 80 80 2.83 1900 No 0.035" Each
RST43-004-10.100 10 100 100 2.83 1900 No 0.035" Each

Guidewire

Product Number Ø inches Total Length mm Spire Length mm Spire Form Configuration Covering Box Size
MTN-BM-89/26-A 0.035" 2600 65 Straight Hydrophilic, radiopaque Blue-Yellow Box of 2
MTN-BM-89/26-A-J 0.035" 2600 65 J-Form Hydrophilic, radiopaque Blue-Yellow Box of 2

Like to find out more about this product?

Arrange a Product Trial Request a Call Back

Delivery Process

1. Purchase order placed
2. 48 Hour Delivery timeline
Urgent orders can be fulfilled within 24 hours
3. Delivered to the hospital by zero emission vehicles
4. Customer receives product, ready to use with patient
