Colonic and Rectal Stents OTW

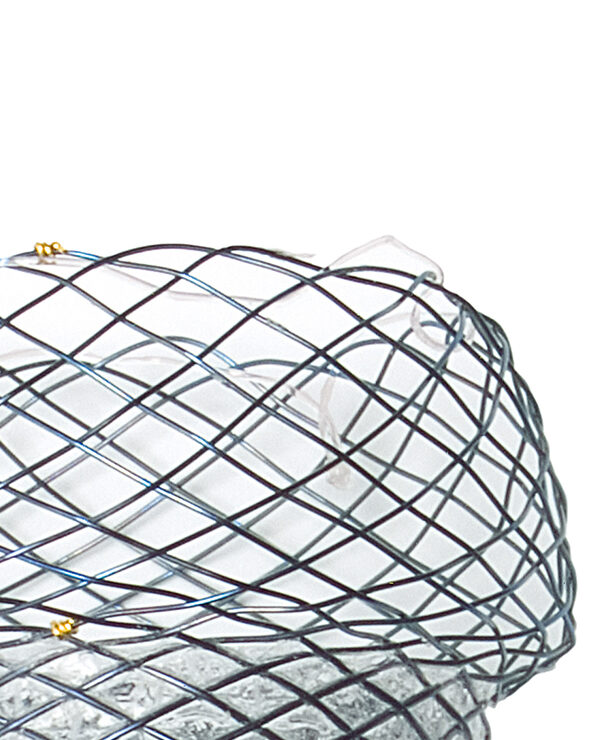

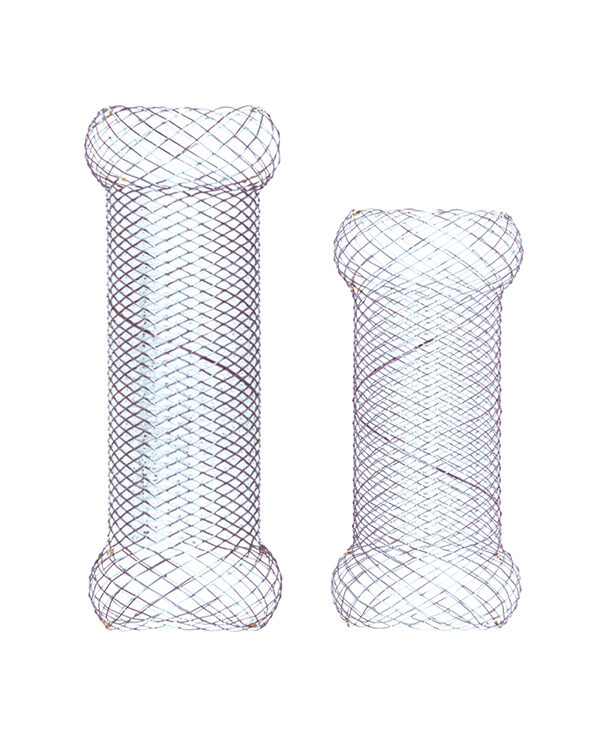

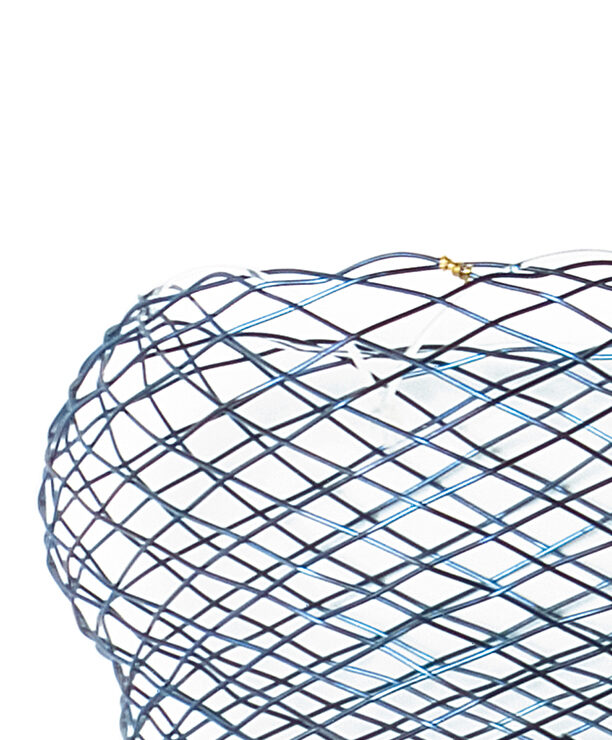

The OTW (over-the-wire) colonic and rectal stents of Micro-Tech have a particularly high positional stability. In the OTW colonic stents this is achieved via a square-edged transition, situated near each end of the stent. This anchors the stent inside the lumen and adapts it optimally to the anatomy and peristalsis of the colon. In contrast, rectal stents are less stimulating and hence more “ball-shaped”, ensuring the patient experiences less irritations in this sensitive area, therefore increasing quality of life.

The partially sheathed OTW colonic and rectal stents produce very high radial forces, therefore they should be placed into straight segments of the colon, and not into the bent segments, such as the right and left flexure of the colon.
Arrange a Product Trial Request a Call Back
01 / 05
Specific Characteristics

  • Nitinol mesh with atraumatic ends
  • Anatomical design
  • Excellent positional stability
  • High radial force
  • Resistant and elastic covering
  • High radiopacity
  • Extraction threads for removal and repositioning
  • Guide wire-compatible up to 0.035 inches

Download brochure >
Order Information Delivery Information

Successful in Practical Use

The stents are successful in application through their opening performance and distinctive end shape this allows the stent to be firmly anchored in the semilunar folds of the colon. In order to facilitate orientation during deployment, the stents have additional X-ray markings at all significant points.

Positionally Stable in All Sizes

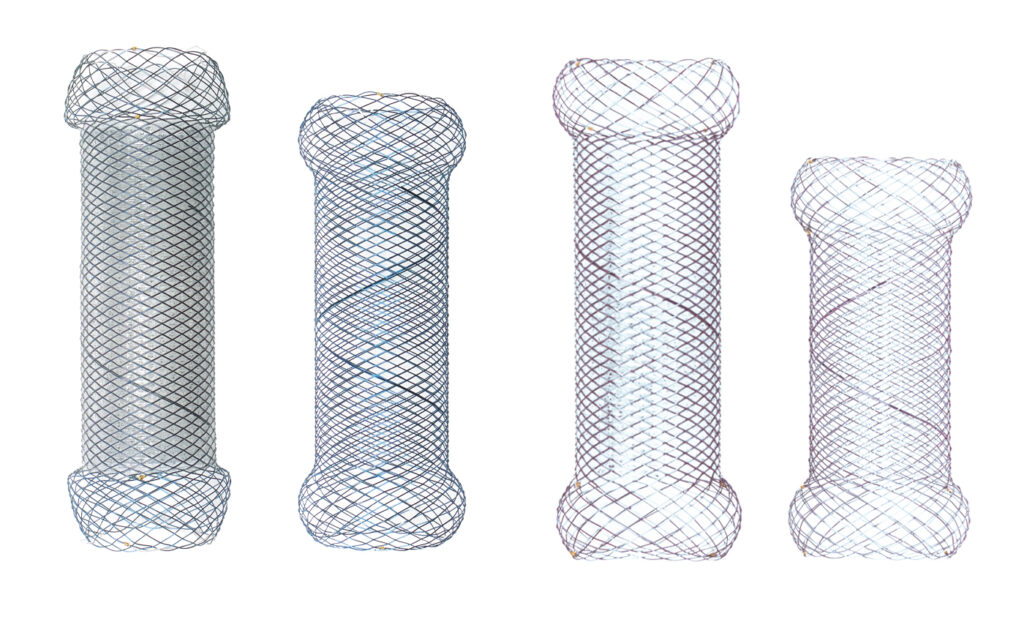

Colonic and rectal stents are available in lengths of 80 mm and 100 mm. Stents for patients who have undergone anastomosis have a length of 60 mm. You can choose between non-covered, partially covered and end-to-end covered versions.
Ordering Information

Colonic Stents Without Covering

Product Number Ø Centre mm Ø End mm Length mm Covering Application End Design Box Size
ST04-101.30.080 30 36 80 Wihtout Colon Mushroom Each
ST04-101.30.100 30 36 100 Without Colon Mushroom Each
ST04-111.30.080 30 36 80 Without Rectum Spherical Each
ST04-111.30.100 30 36 100 Without Rectum Spherical Each

Colonic Stents with Partial Covering

Product Number Ø Centre mm Ø End mm Length mm Covering Application End Design Box Size
ST04-102.30.080 30 36 80 50 Colon Mushroom Each
ST04-102.30.100 30 36 100 70 Colon Mushroom Each
ST04-112.30.080 30 36 80 50 Rectum Spherical Each
ST04-112.30.100 30 36 100 70 Rectum Spherical Each

Anastomosis Stents With End-to-End Covering

Product Number Ø Centre mm Ø End mm Length mm Covering Application End Design Box Size
ST04-109.20.060 20 26 60 60 Colon Spherical Each
ST04-109.26.060 26 32 60 60 Colon Spherical Each
ST04-109.30.060 30 36 60 60 Colon Spherical Each

Introducer System

Description Ø mm/ Fr. Length mm Guidewire RM*1 IC*2 LOCK*3
ST04-111 + 112… 8/24 700 0.035" 2 Yes Yes
ST04-101 + 102 + 109… 8/24` 1100 0.035" 2 Yes Yes
*1 – RM – Radiopaque markers
*2 – IC – Irrigation Channel
*3 – LOCK – Secures the introducer system during storage, transportation, and introduction
Please note that some of our stents in the range have a 4–6-week lead time.

Like to find out more about this product?

Arrange a Product Trial Request a Call Back

Delivery Process

1. Purchase order placed
2. 48 Hour Delivery timeline
Urgent orders can be fulfilled within 24 hours
3. Delivered to the hospital by zero emission vehicles
4. Customer receives product, ready to use with patient
