Oesophageal Stents (GEN-I)

Micro-Tech provides you with a comprehensive selection of self-expanding stents for bypassing oesophageal stenosis. The stents are characterised by high flexibility and are available with and without covering. The working diameter of the stent ranges from 20, 24 or 28mm while lengths vary between 60 and 140mm. The optimum solution is always at hand for every indication.

Arrange a Product Trial Request a Call Back

Specific Characteristics

Self-expanding
Nitinol mesh with atraumatic ends
Excellent positional stability
High radial force
Resistant and elastic covering
Fully covered stents available
Parylene coated
High radiopacity
Extraction threads for removal and repositioning
Guide wire-compatible up to 0.035 inches

Download brochure >

Order Information Delivery Information

Successful in Routine Procedures

The Micro-Tech's oesophageal stent is renowned for its reliability, positional stability, excellent handling, and the wide selection of lengths available.

The stent adapts to the oesophageal wall in the best possible manner thanks to its atraumatic shape and high radial force. Furthermore, the stent possesses excellent radiopacity and can be positioned with good visibility and precision at significant points with the aid of the additional X-ray markings.

X-ray markings on the introducer indicate the ultimate position of the completely opened stent and assist its precise placement.

Positionally Stable Stent Design

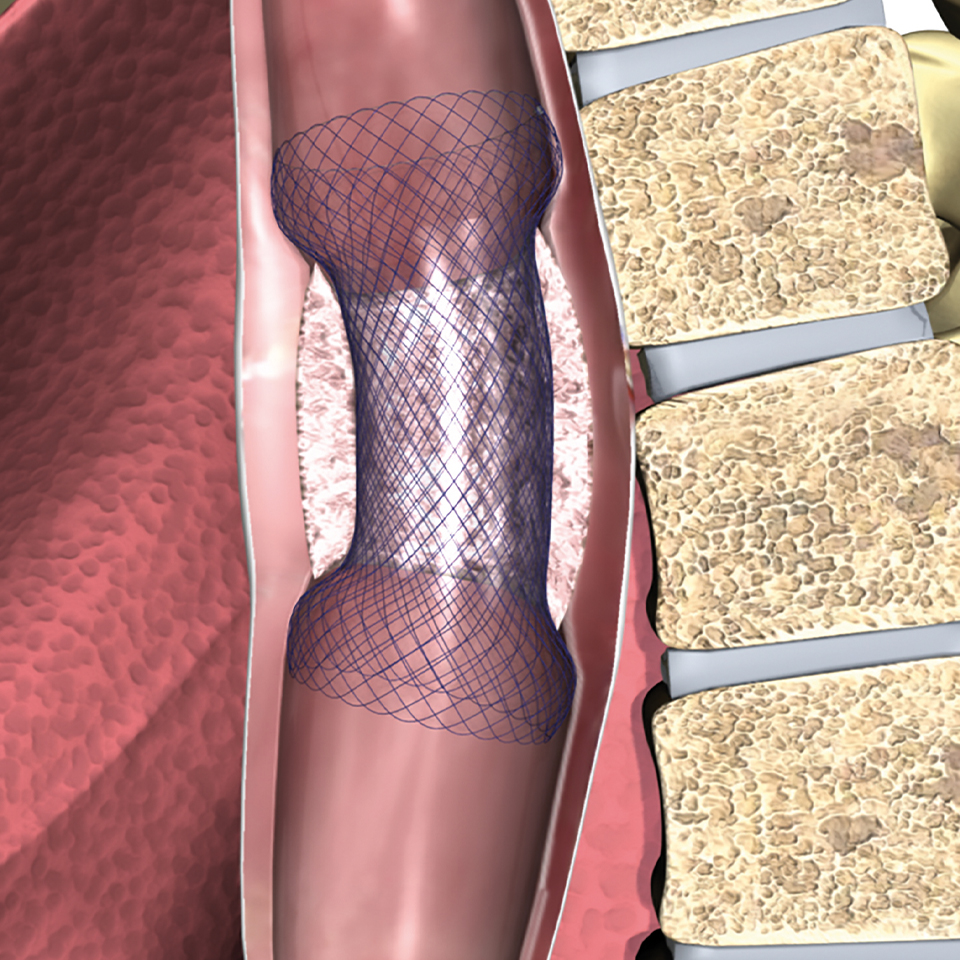

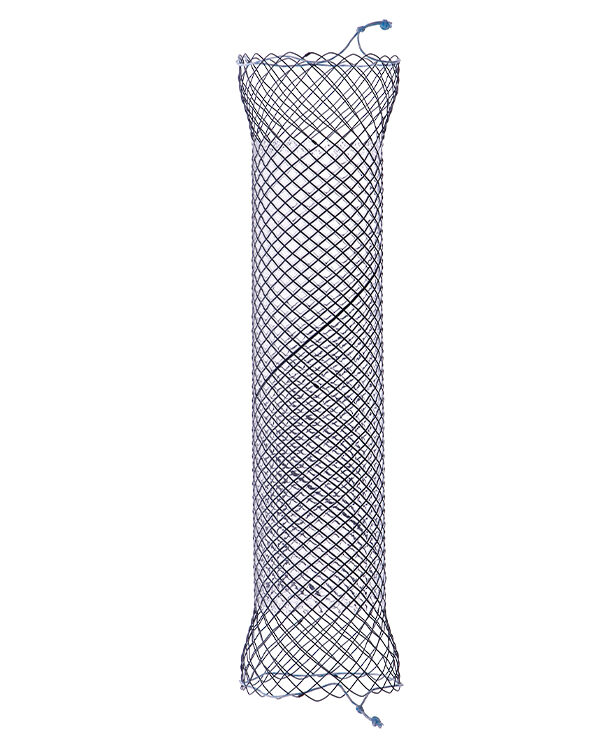

The oesophageal stent is extremely positionally stable. Its self-expanding Nitinol wire adapts to the patient’s anatomy and the atraumatic ends ensure accurate X-ray marking placement, with the Extraction thread maximising the hold.

Diameters Upto 28mm

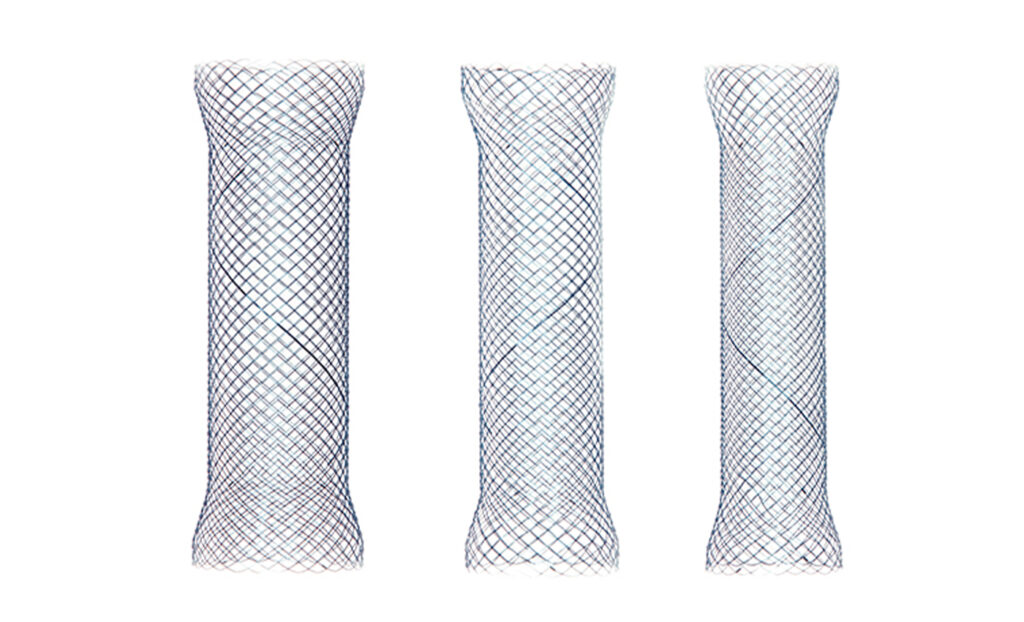

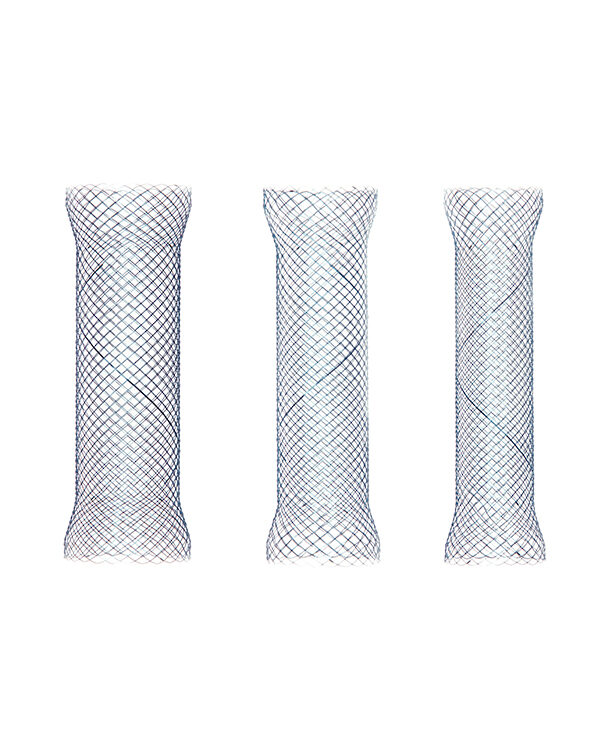

The range of Oesophageal stents will always offer you the appropriate solution, through three different available diameters: 20, 24 or 28mm in the central section. The stent end is 6mm wider in each case.

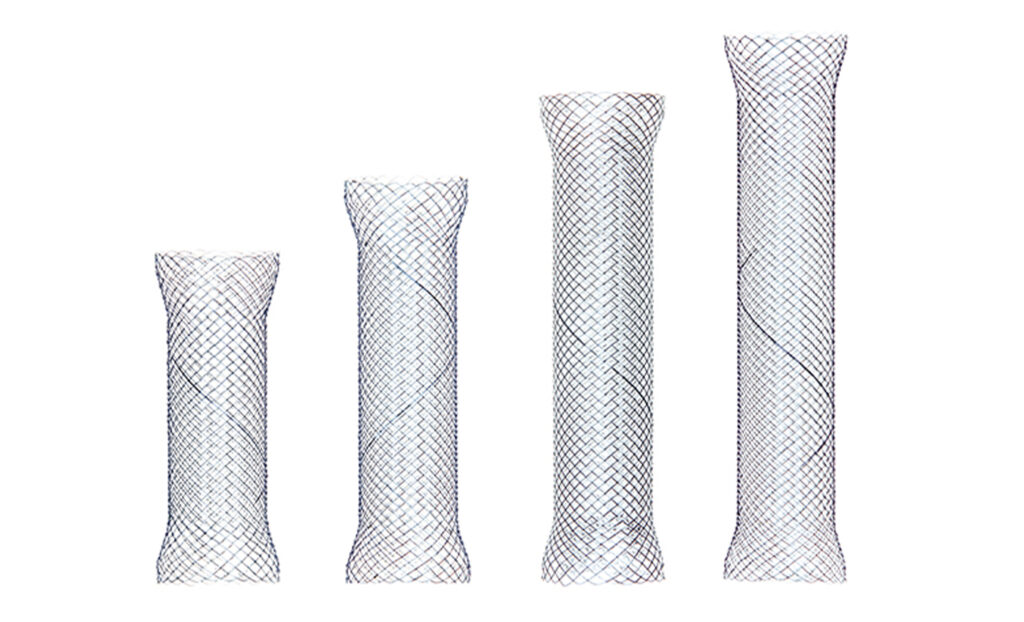

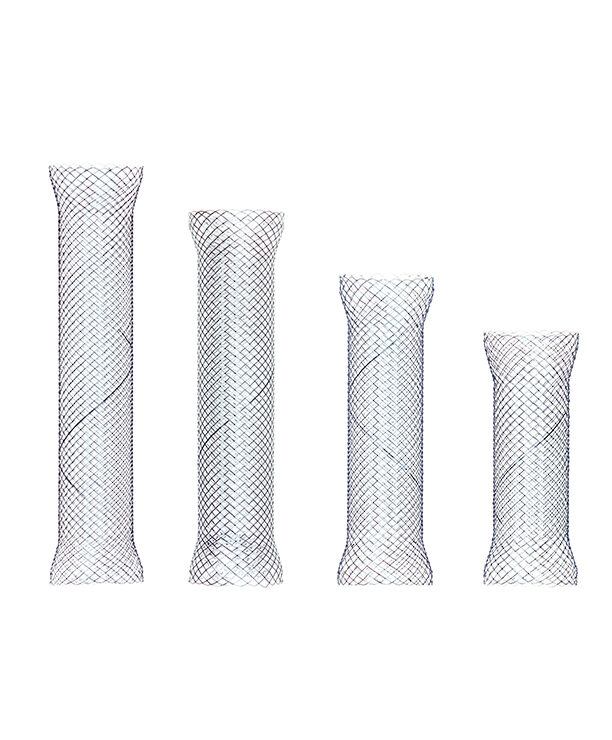

Numerous Standard Lengths

Depending on the length of the site to be bypassed, you can resort to one of five standard lengths: short stents measuring 60 and 80mm, medium lengths of 100 and 120mm and long versions measuring 140mm.

Radiopaque Markers For Secure Insertion of Stents

All our oesophageal stents are equipped with up to 10 radiopaque markers. They are clearly visible under radiological control and thus enable a secure and precise stent release.

Available with or without Covering

Depending on the model, the stents have a protective covering. Choose between a complete covering or a partial covering where the ends remain free and a fully uncovered stent.

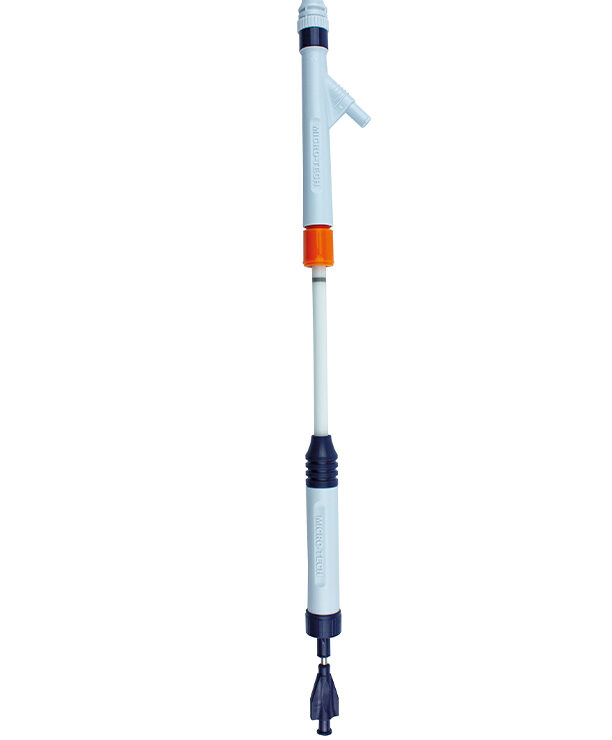

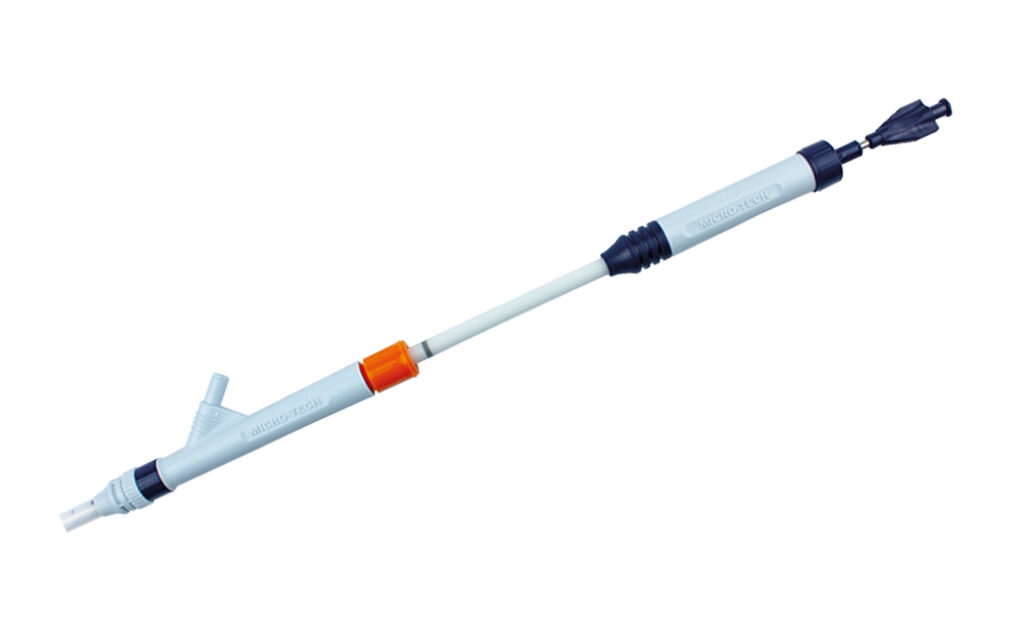

Introducer for Precise Release

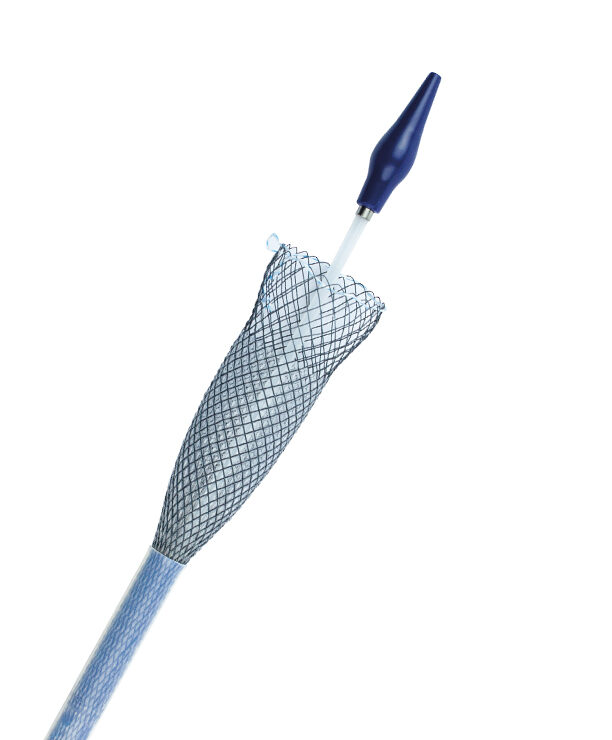

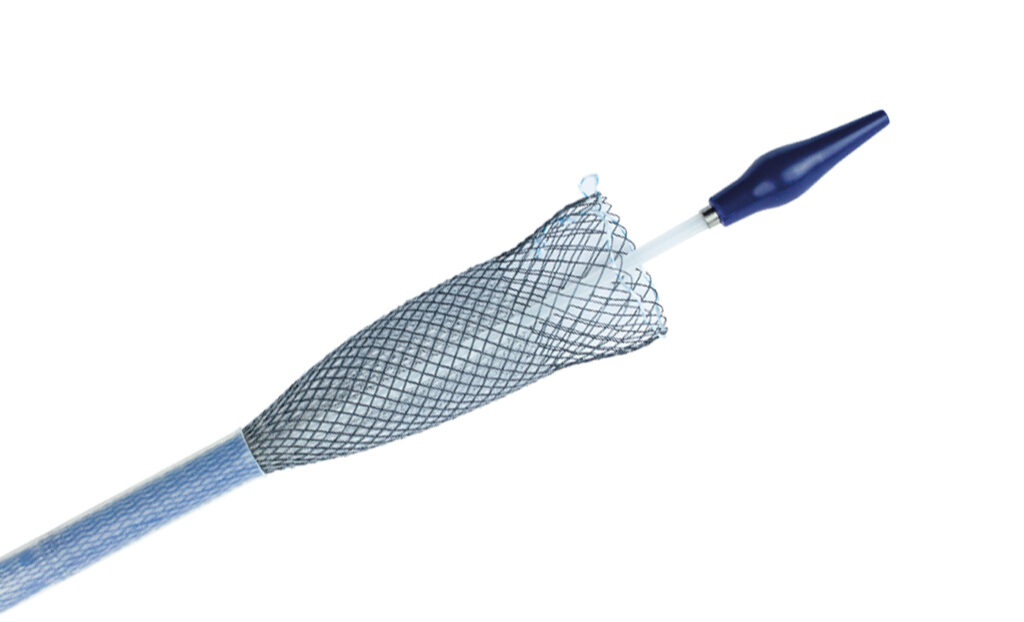

All stents are preloaded on the easy-to-manipulate introducer, which allows rapid and precise stent release. The system also allows you to bring the stent into the desired position even when in the oral cavity during release.

The delivery system featured a mark to demonstrate the “point of no return” at stent placement.

Ordering Information

Stents Without Covering

Product Number	Ø centre mm	Ø end mm	Length mm	Covering mm
ST01-101.20.080	20	26	80	Without
ST01-101.20.100	20	26	100	Without
ST01-101.20.120	20	26	120	Without
ST01-101.20.140	20	26	140	Without
ST01-101.24.080	24	30	80	Without
ST01-101.24.100	24	30	100	Without
ST01-101.24.120	24	30	120	Without
ST01-101.24.140	24	30	140	Without

Stents With Partial Covering

Product Number	Ø centre mm	Ø end mm	Ø end mm	Covering mm
ST01-102.20.060	20	26	60	30
ST01-102.20.080	20	26	80	50
ST01-102.20.100	20	26	100	70
ST01-102.20.120	20	26	120	90
ST01-102.20.140	20	26	140	110
ST01-102.24.080	24	30	80	50
ST01-102.24.100	24	30	100	70
ST01-102.24.120	24	30	120	90
ST01-102.24.140	24	30	140	110

Stents With End-to-end Covering

Product Number	Ø centre mm	Ø end mm	Ø end mm	Covering mm
ST01-103.20.060	20	26	60	60
ST01-103.20.080	20	26	80	80
ST01-103.20.100	20	26	100	100
ST01-103.20.120	20	26	120	120
ST01-103.20.140	20	26	140	140
ST01-103.24.060	24	30	60	60
ST01-103.24.080	24	30	80	80
ST01-103.24.100	24	30	100	100
ST01-103.24.120	24	30	120	120
ST01-103.24.140	24	30	140	140
ST01-103.28.100	28	34	100	100
ST01-103.28.120	28	34	120	120

Introducer System

Ø mm/Fr	Length mm	Guide wire	RM*1	IC*2	Lock*3
8/24	700	0.035 inch	2	Yes	Yes

Recommended guide wire: 600375-5
*1 RM – radiopaque markings
*2 IC – irrigation channel
*3 Lock – secures the introducer system during storage, transportation and introduction
