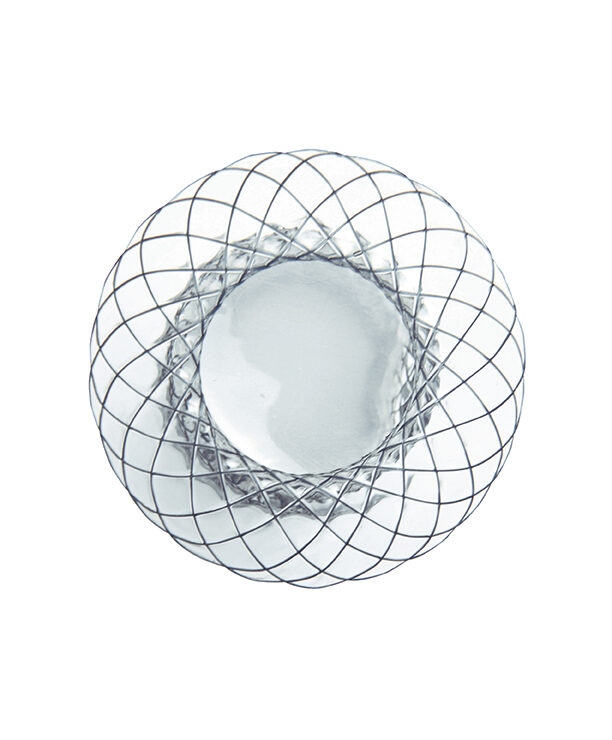

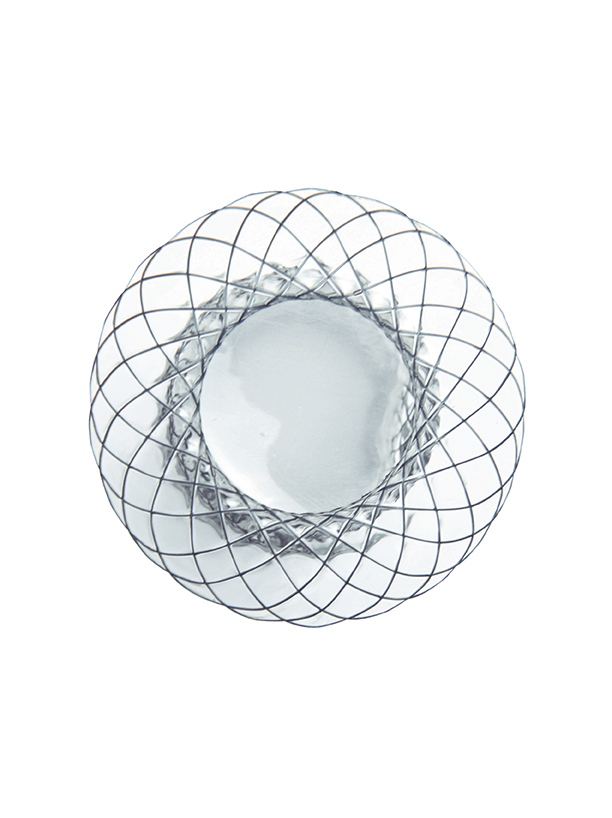

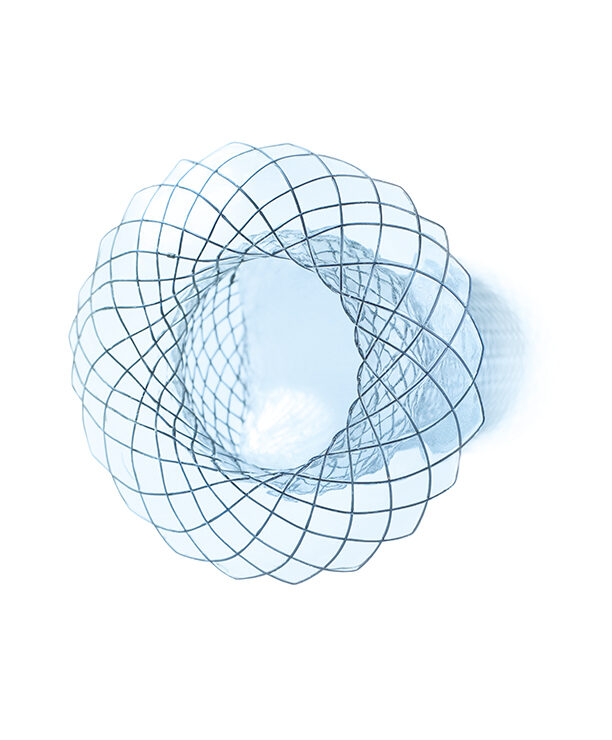

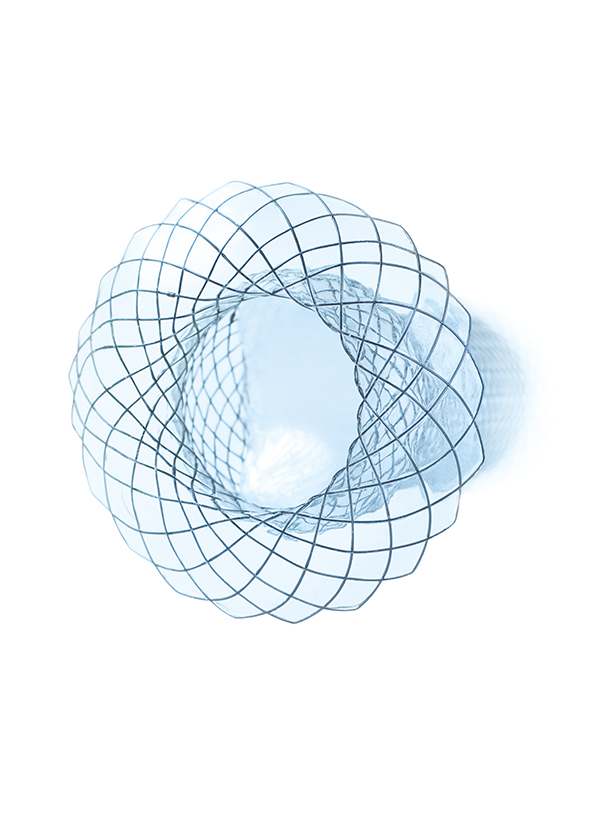

Umbrella Valve Stent

With the Umbrella-Valve-Stent, Micro-Tech combines perfect hold with effective protection against reflux. Its innovative design prevents stent migration and avoids development of pressure necrosis in the stomach. For even greater patient comfort, the stent is also equipped with the unique 2-way valve system. Liquids and foods reach the stomach unimpeded through the valve system and reflux is dramatically prevented. In the event of excessive pressure, the valve opens towards the oral direction allowing the patient to vomit.
01 / 02
Specific Characteristics

  • Unique umbrella design
  • Innovative 2-way valve system
  • Self-expanding
  • Nitinol mesh with atraumatic ends
  • Excellent positional stability
  • High radial force
  • Resistant and elastic covering
  • Fully covered stents available
  • High radiopacity
  • Extraction threads for removal and repositioning
  • Guide wire-compatible up to 0.035 inches

Download brochure >
Ordering Information

Umbrella Valve Fully Covered Stents

Product Number Ø Centre mm Ø End prox. / bulge / end dist. mm Length mm Covering End Design-Proximal End Design-Distal Box Size
ST01-115.24.080 24 30/30/50 80 80 Spherical Umbrella anti-reflux valve Each
ST01-115.24.100 24 30/30/50 100 100 Spherical Umbrella anti-reflux valve Each

Introducer System

Ø mm/ Fr. Length mm Guidewire RM*1 IC*2 LOCK*3
8.5 / 25 700 0.035" 2 Yes Yes
