Stone Extraction Basket

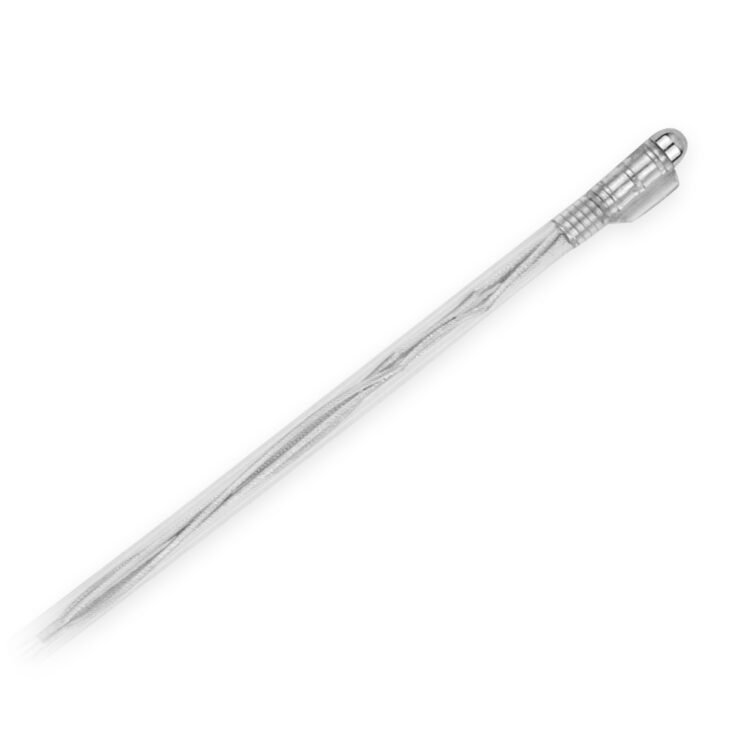

The stone extraction baskets from the SHOW series enable the endoscopic removal of stones from the bile ducts. The basket consists of four hexagonally shaped stainless-steel cables. The hose tip on the distal end, enables wire-guided stone extraction. The extraction baskets are available in two sizes to meet various clinical requirements.
01 / 04
Specific Characteristics

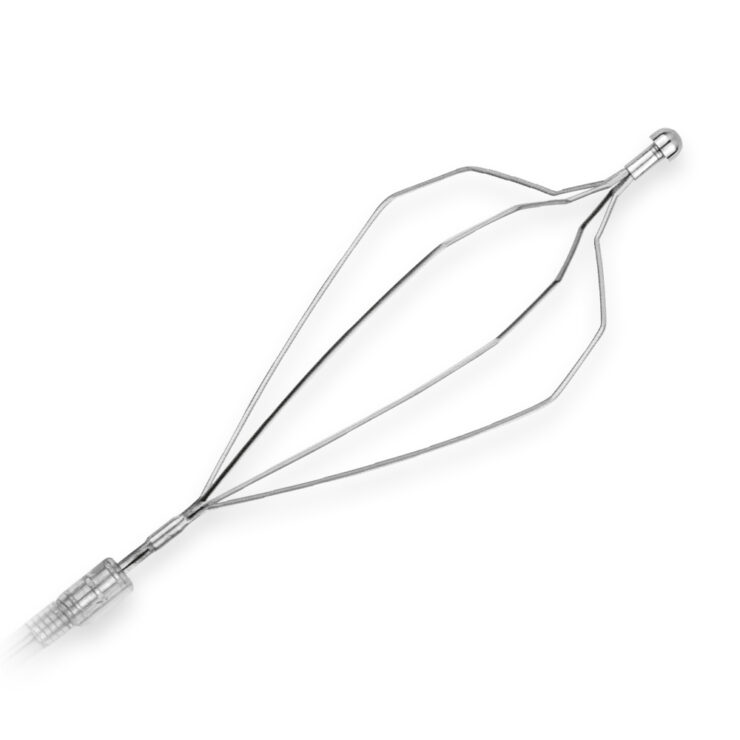

  • Basket made of four stainless steel wires in a hexagonal shape
  • Available in sizes 15 and 20 mm
  • Suitable for short and long wire ERCP
  • Not suitable for lithotripsy
  • Latex-free
  • Compatible guidewire 0.035 inch

Download brochure >

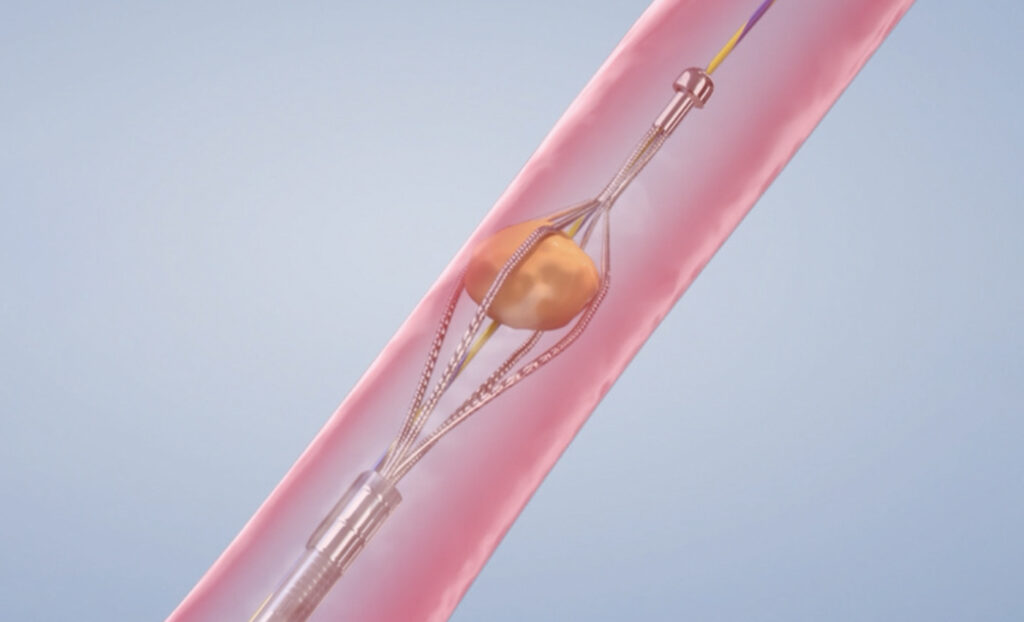

Designed for Wire-Guided Stone Extraction

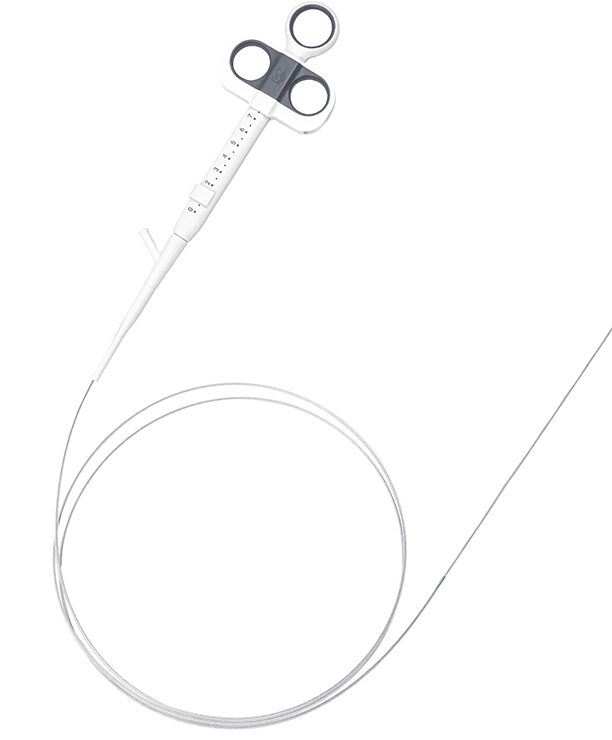

The entire system has a Working length of 2,000 mm.
Ordering Information

Stone Extraction Basket

Product Number Form Ø Basket mm Working Channel mm Working Length mm Box Size
RSEB-H4-15 Hexagonal, 4 Cables 15 3.7 2000 Each
RSEB-H4-20 Hexagonal, 4 Cables 20 3.7 2000 Each
