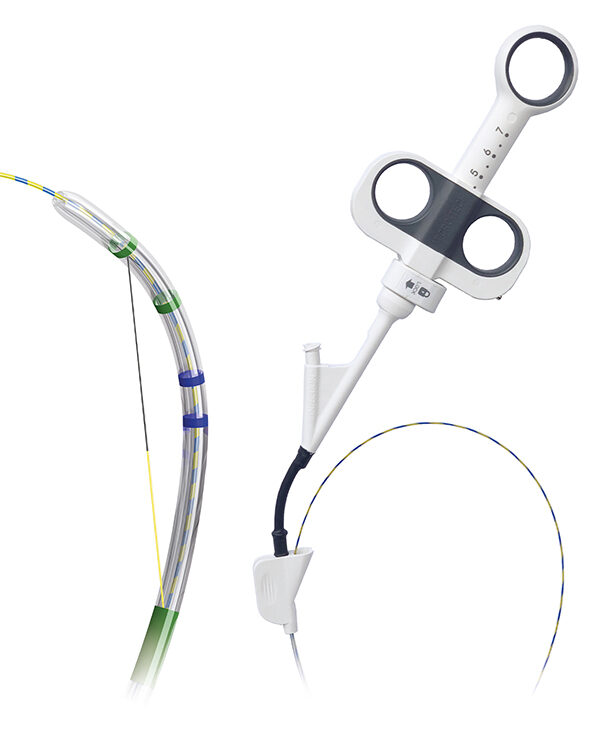

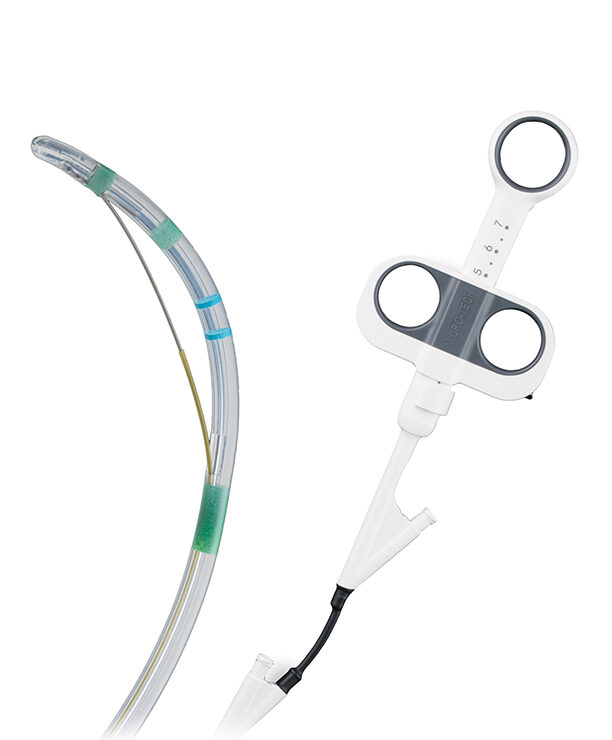

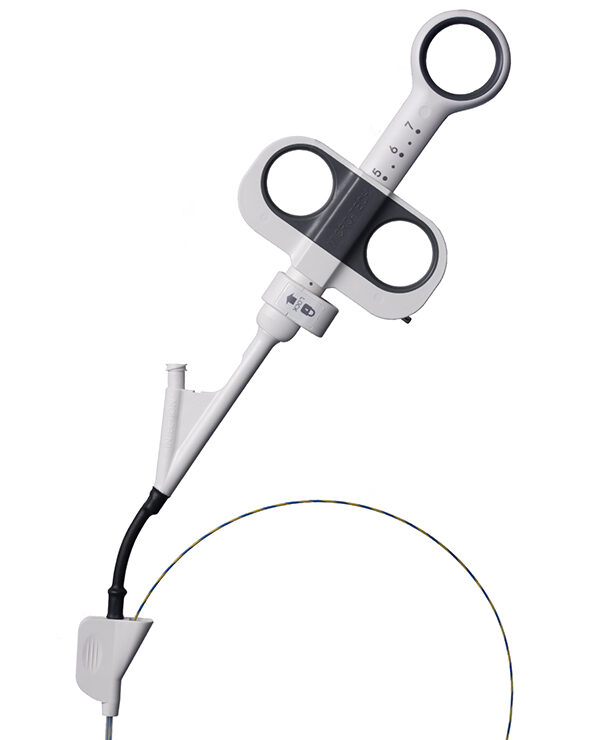

Sphinx 3-Lumen Papillotome

Thanks to the novel opening mechanism of the guide wire port, the papillotome can be used for both short and long wire procedures. The C-shaped guide wire lumen allows a gentle splitting movement to separate the guide wire from the papillotome catheter.
Arrange a Product Trial Request a Call Back
01 / 08
Specific Characteristics

  • 3 lumens for guide wire, cutting wire and contrast injection
  • Optional insulation of proximal cutting wire
  • Cutting direction at 11 o’clock
  • Filiform tip, tapered to 5 Fr
  • Working length: 2000 mm
  • Outer diameter: 2.5 mm
  • Guide wire compatible fully mobile up to 0.035 inch

Download brochure >
Order Information Delivery Information

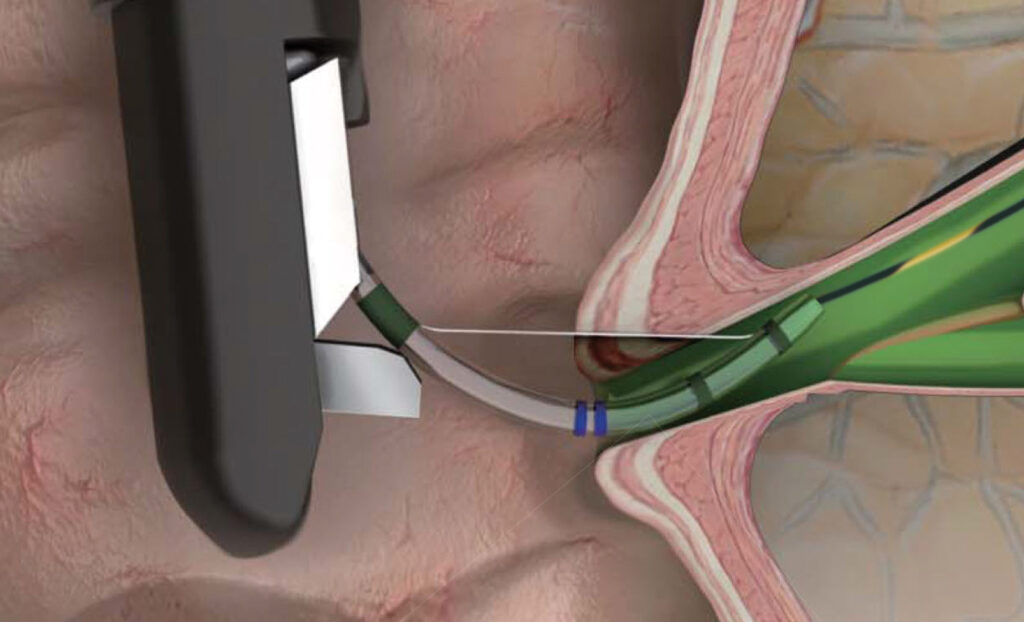

Accurate Cannulation and Positioning

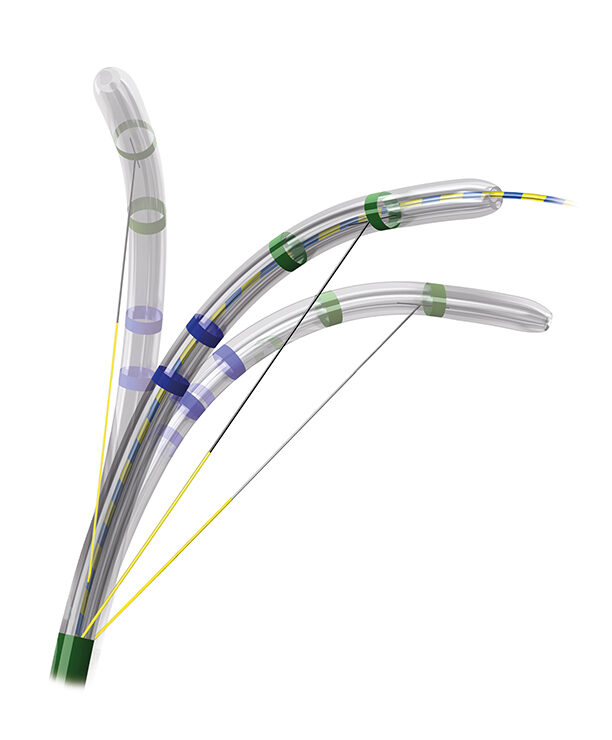

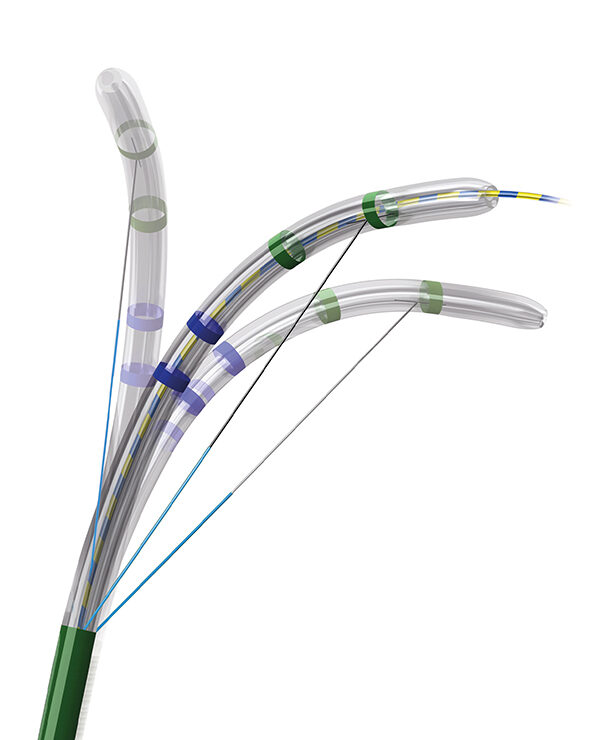

The adjustable tip ensures accurate cannulation and positioning of the cutting wire prior to papillotomy.
Ordering Information

SPHINX Papillotome, 3-Lumen

Product Number Tip length mm Cutting Wire
Length mm 		Insulated Coating Guide Wire
length cm 		Cutting Wire
monofil / polyfil 		Tip Form Ø working
channel mm 		Box Size
RDSP-0020-111 0 20 No No Monofil Cone ≤ 3.2 Each
RDSP-0020-121 0 20 No 260 Monofil Cone ≤ 3.2 Each
RDSP-0020-113 0 20 No 450 Monofil Cone ≤ 3.2 Each
RDSP-0025-111 0 25 No No Monofil Cone ≤ 3.2 Each
RDSP-0025-121 0 25 No 260 Monofil Cone ≤ 3.2 Each
RDSP-0025-131 0 25 No 450 Monofil Cone ≤ 3.2 Each
RDSP-0030-111 0 30 No No Monofil Cone ≤ 3.2 Each
RDSP-0030-121 0 30 No 260 Monofil Cone ≤ 3.2 Each
RDSP-0030-131 0 30 No 450 Monofil Cone ≤ 3.2 Each
RDSP-0220-111 2 20 No No Monofil Cone ≤ 3.2 Each
RDSP-0220-121 2 20 No 260 Monofil Cone ≤ 3.2 Each
RDSP-0220-131 2 20 No 450 Monofil Cone ≤ 3.2 Each
RDSP-0225-111 2 25 No No Monofil Cone ≤ 3.2 Each
RDSP-0225-121 2 25 No 260 Monofil Cone ≤ 3.2 Each
RDSP-0225-131 2 25 No 450 Monofil Cone ≤ 3.2 Each
RDSP-0230-111 2 30 No No Monofil Cone ≤ 3.2 Each
RDSP-0230-121 2 30 No 260 Monofil Cone ≤ 3.2 Each
RDSP-0230-131 2 30 No 450 Monofil Cone ≤ 3.2 Each
RDSP-0520-111 5 20 No No Monofil Cone ≤ 3.2 Each
RDSP-0520-121 5 20 No 260 Monofil Cone ≤ 3.2 Each
RDSP-0520-131 5 20 No 450 Monofil Cone ≤ 3.2 Each
RDSP-0525-111 5 25 No No Monofil Cone ≤ 3.2 Each
RDSP-0525-121 5 5 No 260 Monofil Cone ≤ 3.2 Each
RDSP-0525-131 5 25 No 450 Monofil Cone ≤ 3.2 Each
RDSP-0530-111 5 30 No No Monofil Cone ≤ 3.2 Each
RDSP-0530-121 5 30 No 260 Monofil Cone ≤ 3.2 Each
RDSP-0530-131 5 30 No 450 Monofil Cone ≤ 3.2 Each
Please note that some of our products in the range have a 4–6-week lead time.
