Pseudocyst Stent (GEN-II)

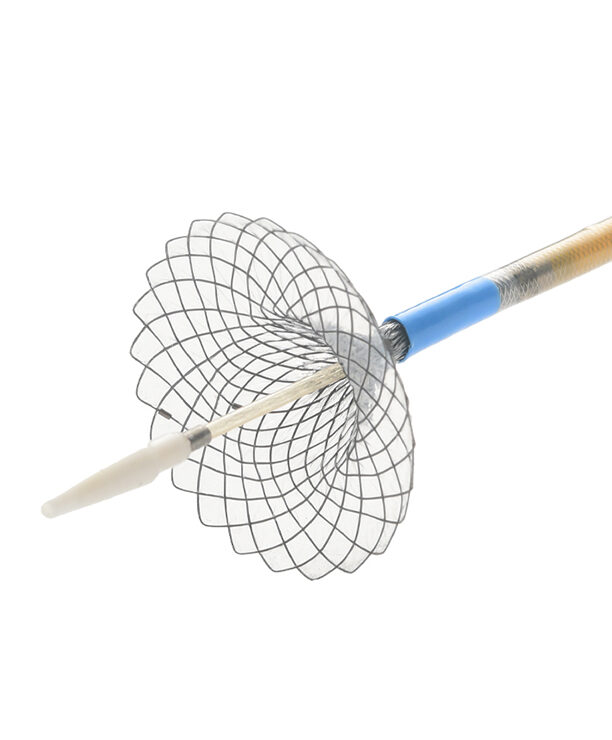

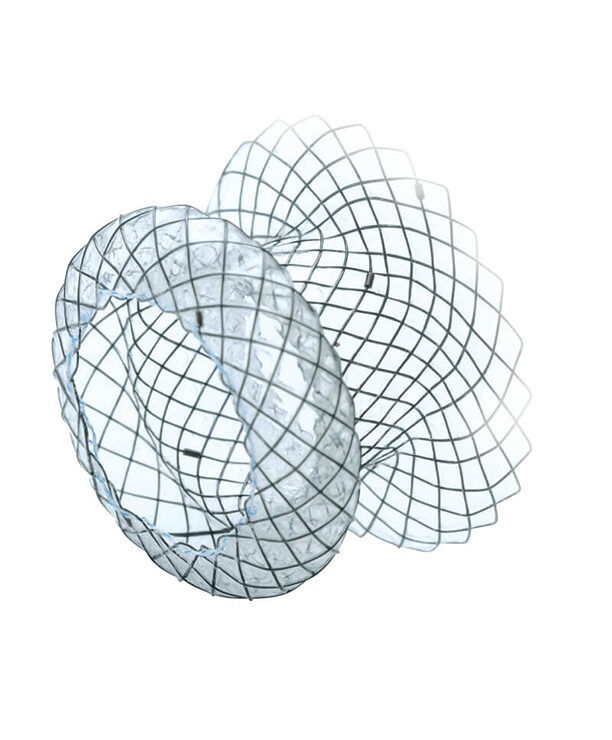

The Pancreatic pseudocyst stent is used for reliable drainage of endoscopically removed concrement. The design of the stent with its distal umbrella and proximal tulip shapes, ensures that during an eventual migration a dislocation would only occur into the stomach and not into the cyst.
01 / 02
Specific Characteristics

  • Stent with complete silicone covering
  • High degree of positional stability
  • Atraumatic tips
  • High level of radial force
  • Tantalum radiomarkers
  • Guide wire passage up to 0.035 inches
  • TTS insertion system with 3.5mm diameter, 1800mm length, two X-ray markings, rinsing attachment and lock to secure the introducer set during transport, storage, and insertion

Download brochure >

Excellent Identification on Radiological Images.

The large diameter of 16mm in the middle of the stent allows for endoscopic removal of concrement. The 10.5 French TTS (through-the-scope) insertion system is brought into position through the working channel of the endoscope with the aid of a guide wire. When the stent is released, 4 radiopaque markers at each end of the stent guarantee excellent identification on radiological images.
Ordering Information

Pseudocycst Stents

Product Number Ø Centre mm End Ø mm
proximal / distal
Total Length mm Covering End Design
proximal - distal
System Length System Ø
Centre mm
Box Size
NST33-544-16.015 16 26/30 15 15 Mushroom - Umbrella 1800 3.5 (=10.5Fr) Each
NST33-544-16.020 16 26/30 20 20 Mushroom - Umbrella 1800 3.5 (=10.5Fr) Each
NST33-544-16.025 16 26/30 25 25 Mushroom - Umbrella 1800 3.5 (=10.5Fr) Each
NST33-544-16.030 16 26/30 30 30 Mushroom - Umbrella 1800 3.5 (=10.5Fr) Each

Introducer System

Ø mm/Fr. Length mm Guidewire RM *1 IC *2 Lock *3
3.5/10 1800 0.035* 2 Yes Yes
*1 – RM = Radiopaque Markers
*2 – IC = Irrigation Channel
*3 – Lock = Secures the introducer system during storage, transportation, and introduction
