Segmented Oesophageal Stent

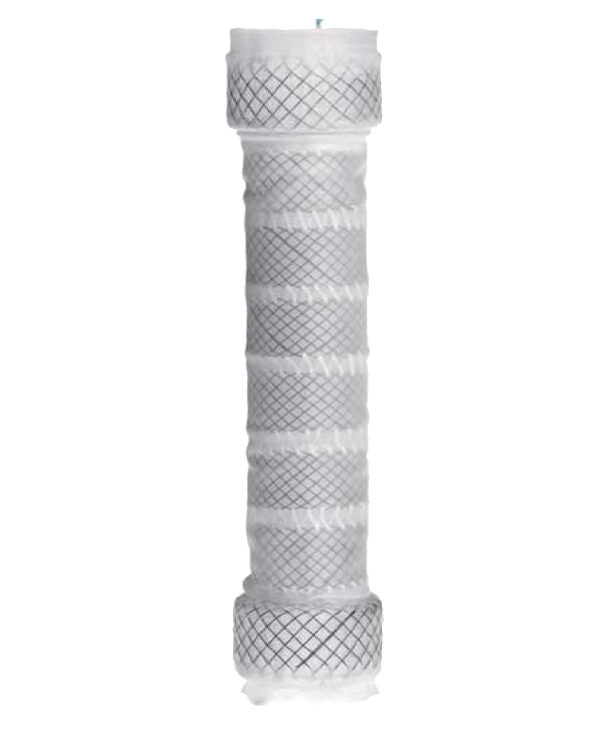

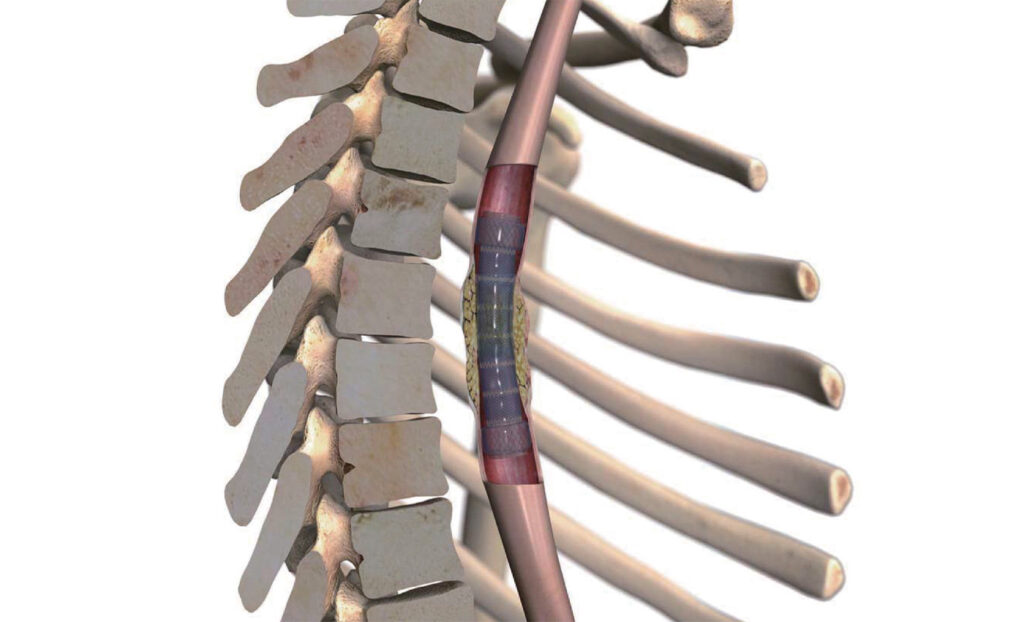

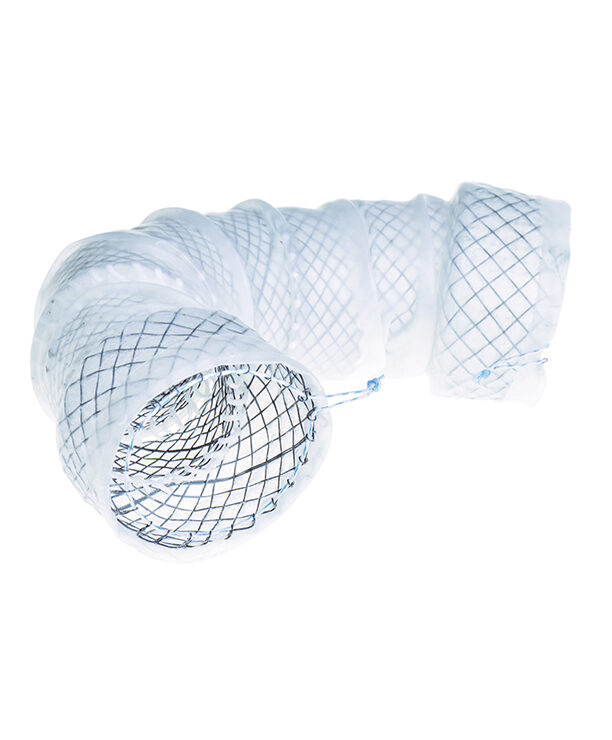

This oesophageal stent with segmented design maximises flexibility and adaptability when stenting stenosis and leakages. In contrast to conventional one-piece stents, this design comprises of several segments that are independently mobile. This enables the stent to adapt perfectly to both anatomy and peristalsis and ensures maximum positional stability.
01 / 02
Specific Characteristics
  • Segmented stent design
  • Self-expanding nitinol fabric
  • High level of radial force and positional stability
  • Robust, elastic covering
  • Guide wire passage up to 0.035 inches
Download brochure >

Safe Removal and Repositioning

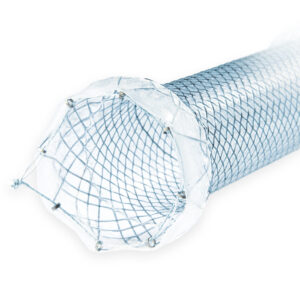

All segmented stents have a double full-cover and two extraction threads for a safe removal and repositioning of the stents. Throughout placement the defined lumen is at no point lost due to the segmentation the stent.
Ordering Information

Segmented Oesopheageal Stents

Product Number Ø Centre mm Ø End mm Length Covering mm Box Size
ST71-224-18.060 18 24 60 With covering, double-cup Each
ST71-224-18.080 18 24 80 With covering, double-cup Each
ST71-224-18.100 18 24 100 With covering, double-cup Each
ST71-224-18.120 18 24 120 With covering, double-cup Each
ST71-224-18.140 18 24 140 With covering, double-cup Each
ST71-224-22.060 22 28 60 With covering, double-cup Each
ST71-224-22.080 22 28 80 With covering, double-cup Each
ST71-224-22.100 22 28 100 With covering, double-cup Each
ST71-224-22.120 22 28 120 With covering, double-cup Each
ST71-224-22.140 22 28 140 With covering, double-cup Each

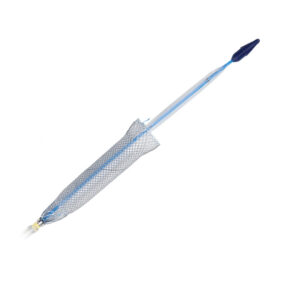

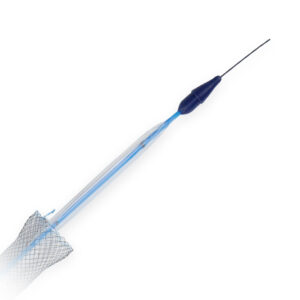

Introducer System

Ø mm/ Fr. Length Guide wire RM*1 IC*2 LOCK*3
8 / 24 650 0.035" 2 Yes Yes
*1 – RM = Radiopaque Markers
*2 – IC = Irrigation Channel
*3 – Lock = Secures the introducer system during storage, transportation, and introduction
