LOCKADO™ Haemostasis Clip

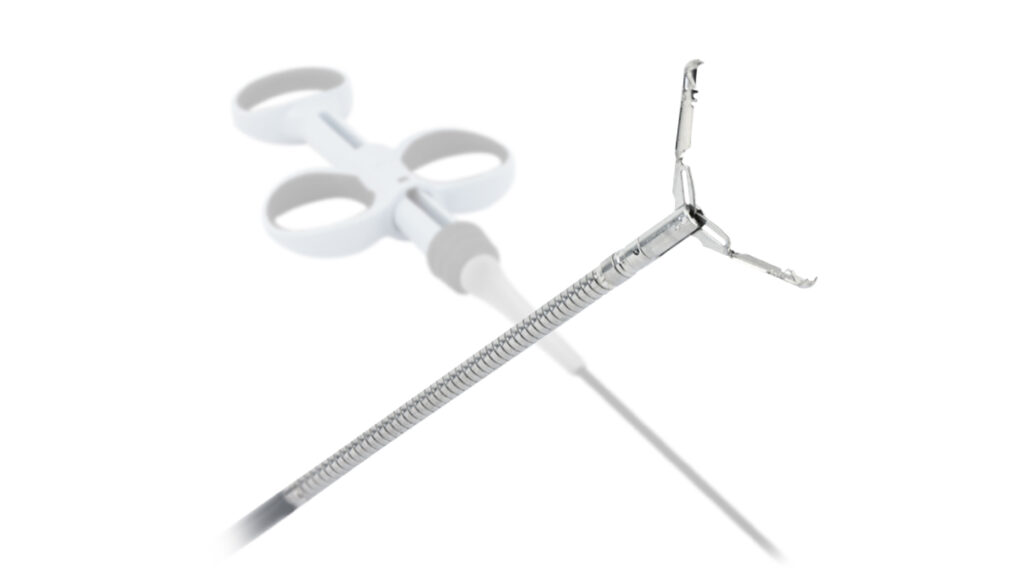

The LOCKADO™  was designed by Micro-Tech to stop bleeding more efficiently, the main reason for this is the increased compression pressure. Thanks to the improved locking force, the clip is also suitable for treating large lesions, defects, and tumour tissue by providing a reliable grip. The hold is enhanced by ten teeth, six of which are positioned laterally. They ensure optimal inclusion and retention of the tissue. Repeated positioning before final clip deployment enables more precision and flexibility. The clip segment protruding into the lumen is particularly short and thus reduces the risk of injuries to the opposing tissue. The range includes four models with different span widths, so that you can ensure that you always have the right clip size for all needs and applications.

Arrange a Product Trial Request a Call Back

Specific Characteristics

Maximum span of up to 20mm
Stops bleeding quickly and safely
Increased compression pressure
Ten teeth ensure ideal hold
Repeated opening and closing before fixation
Good fixation due to better adaptation of tissue
Reliable closure for large defects
Short clip segment for minimized tissue damage
Precise control even in angled areas
Reliable 360° bidirectional rotation
1:1 Transfer
MRI ready

Download brochure >

Order Information Delivery Information

LOCKADO™ G-Type

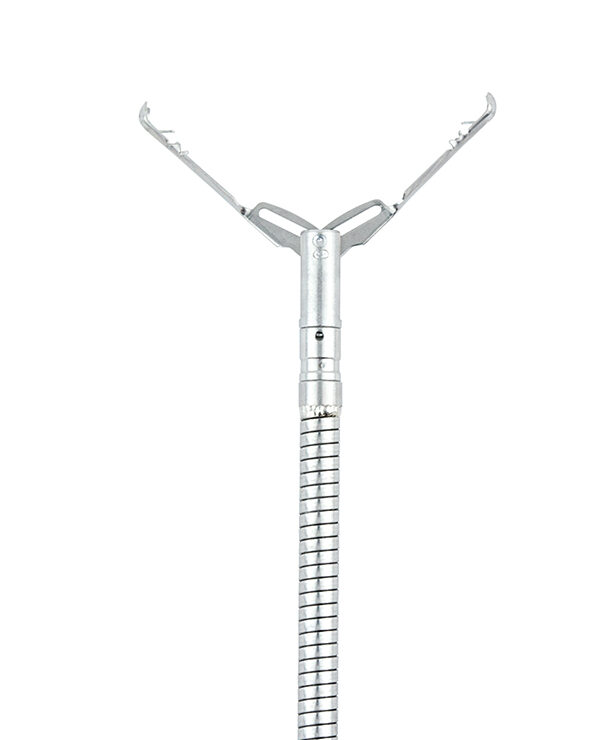

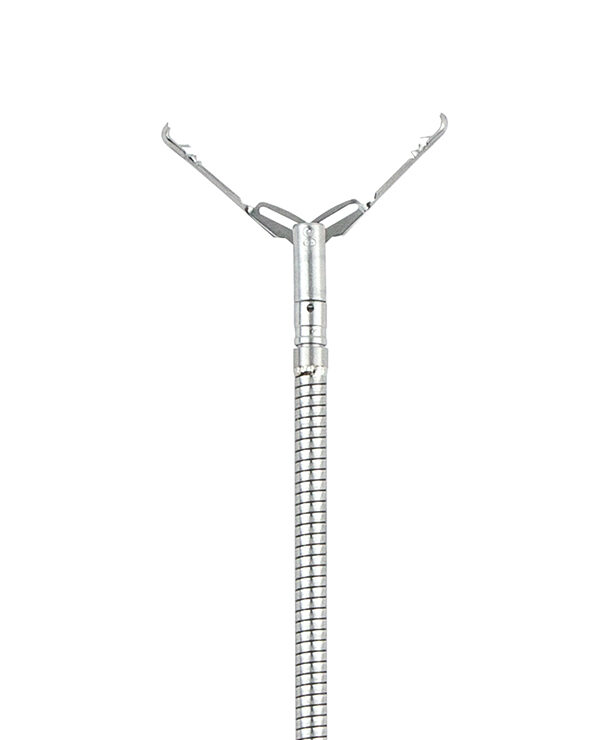

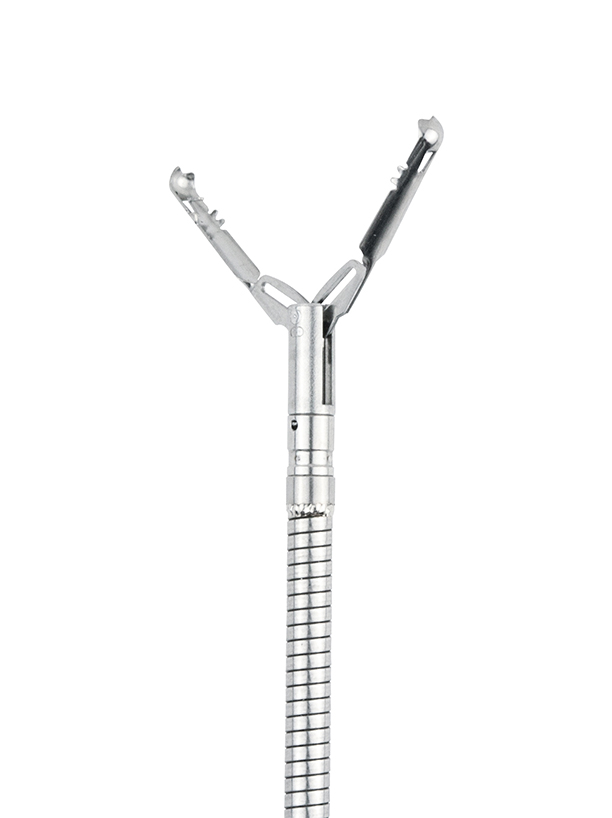

With the LOCKADO™ G-Type, Micro-Tech has set a new standard for clip-based haemostasis. Its span of 20mm can enclose a particularly large amount of tissue, so that even larger lesions, defects, and tumours can be treated with just a few clips. In addition to ten teeth, the LOCKADO™ G-Type clips are also equipped with two hooks, which help to hold the tissue in place and offers optimal support during fixation.

Multiple Spans Available

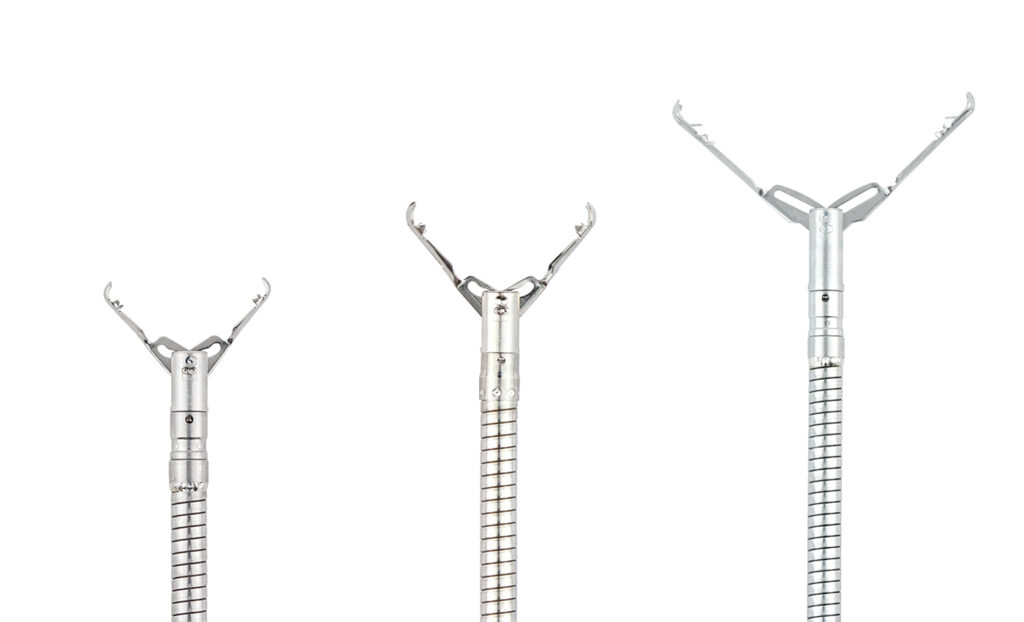

The LOCKADO™ range includes clips with different spans: 8, 11, 16mm, and now also the LOCKADO™ G-Type with a span of 20mm.

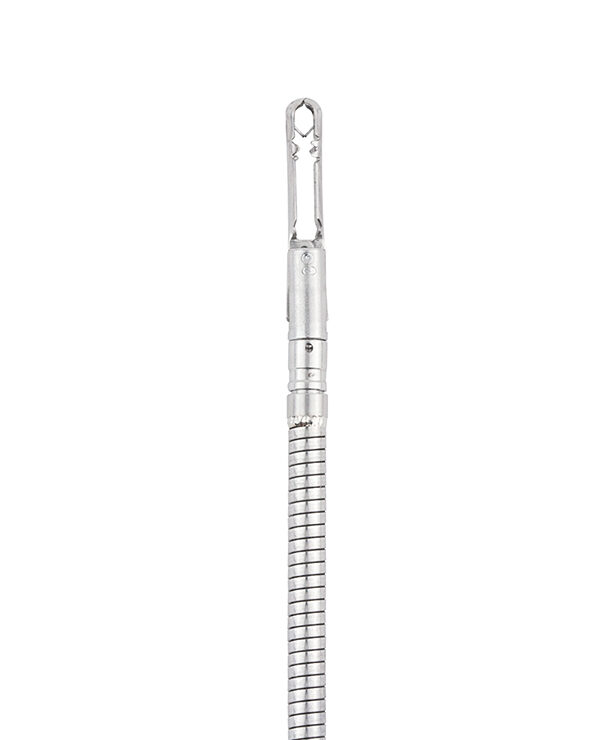

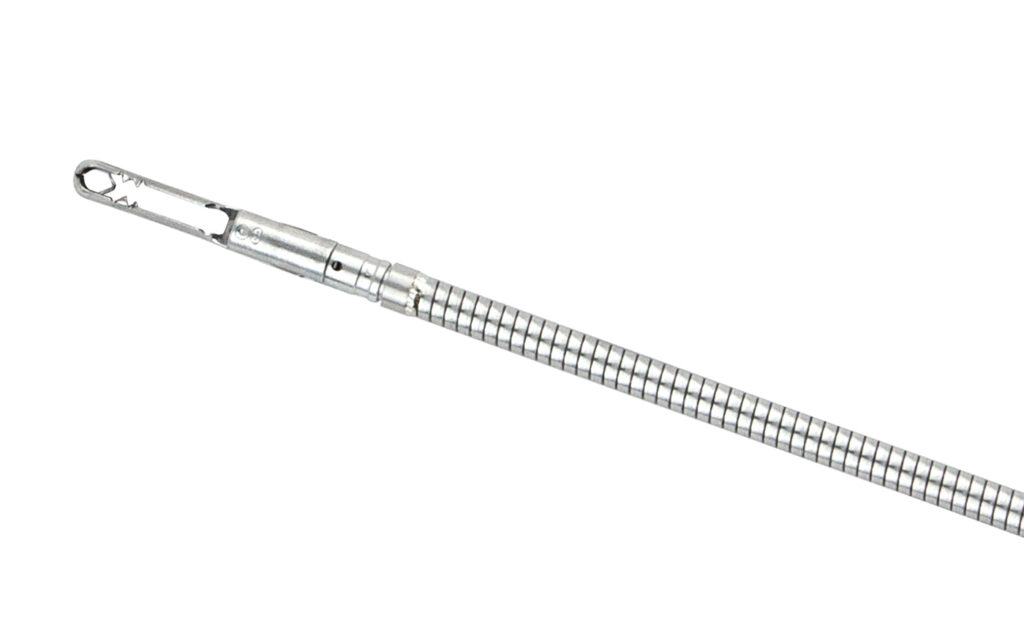

Short Clip Section

The short clip section protrudes only a few millimetres
into the lumen, thus sparing the tissue on the opposite side.

Versatile Applications

• Closure after POEM therapy
• Closure after Zenker‘s diverticulotomy
• Adaptation of wound edges according to ESD

Precise Control

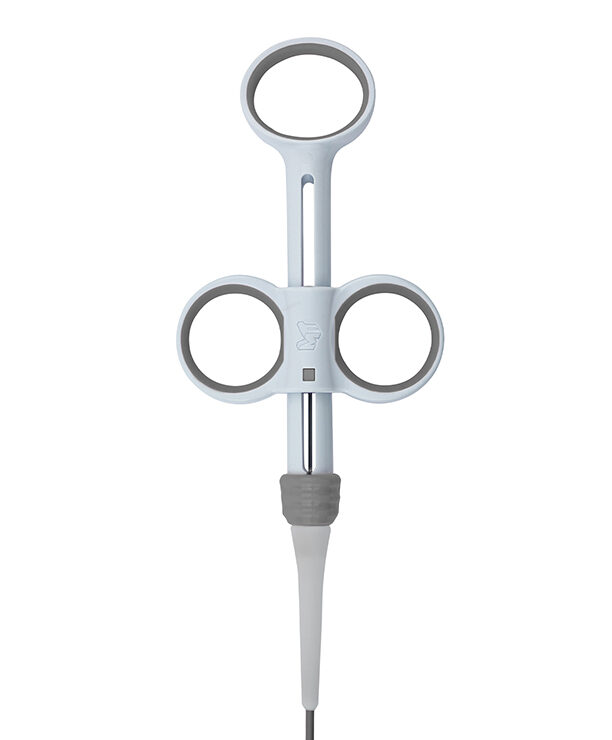

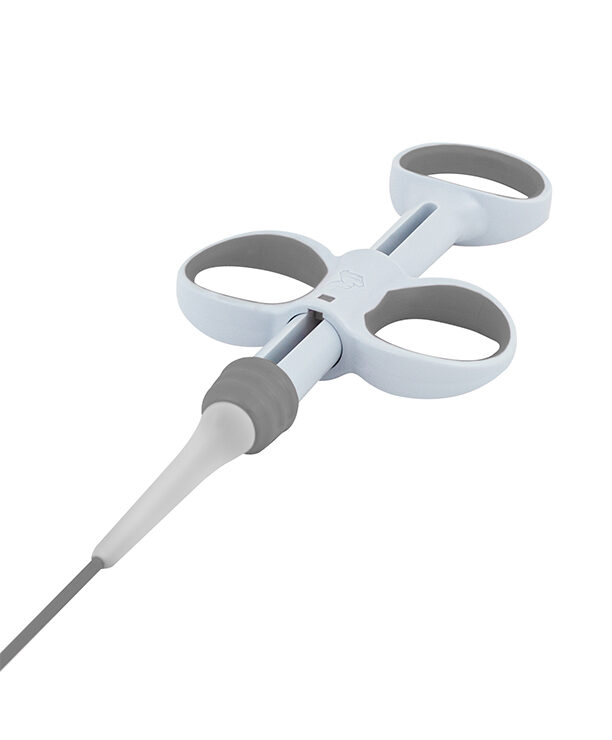

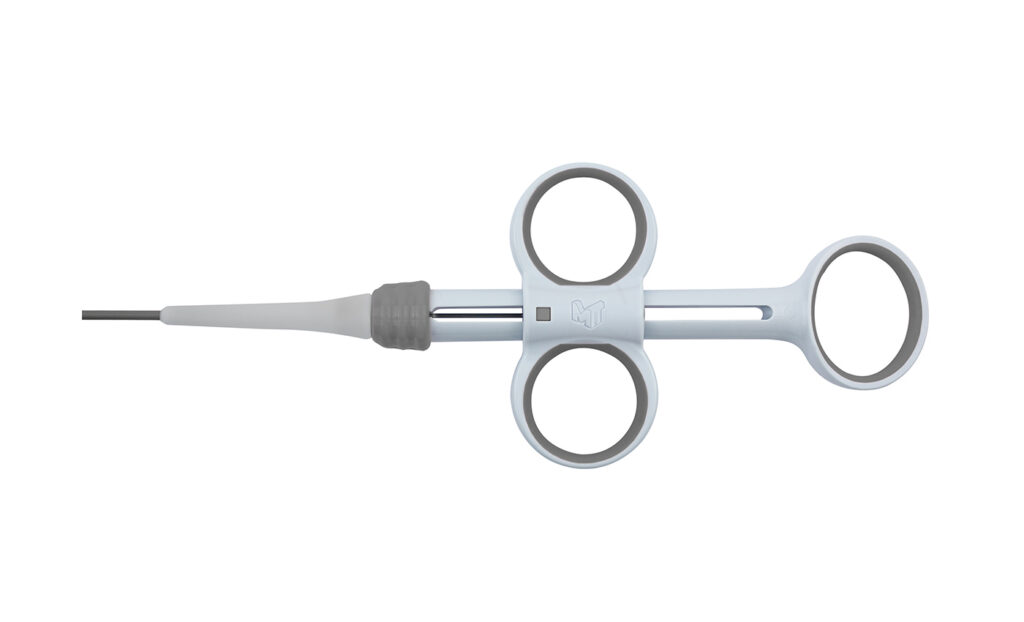

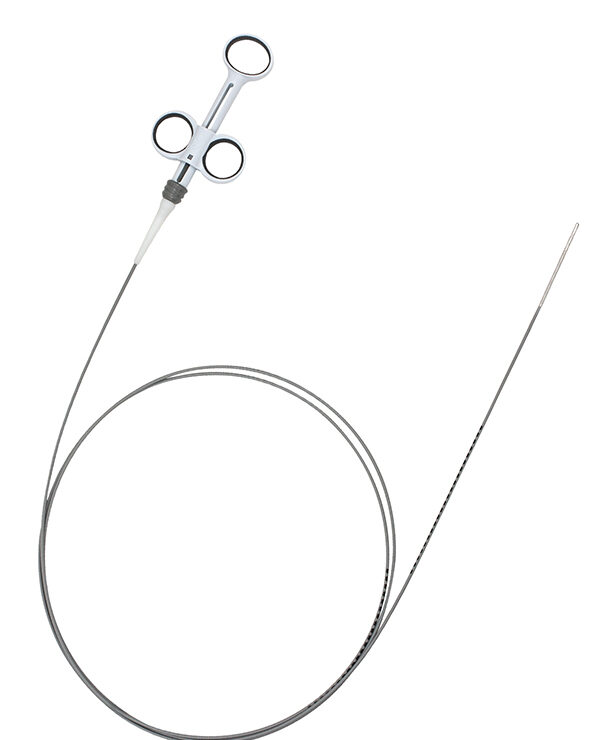

The LOCKADO™ models come with a three-ring handle for greater comfort. All handles are ergonomically designed and ensure precise control of the clip. The clip can be rotated to the left and right by 360°, and it can also be opened and closed several times. Controlled fixation at any time – even in regions that are difficult to reach. Even the most minute movements are directly and precisely transmitted to the distal end. For quick assignment, the handles are marked in different colours.

Order Information

LOCKADO™ G-Type Clip

	Product Number	Clip Max. Span Width mm	Length mm	Clip Angle	Instrument Ø mm	Grip Colour	Covering	Box Size
	LOCK-G-26-195-C	20	1950	135°	2.6	Grey	Grey	Box of 10
	LOCK-G-26-230-C	20	2300	135°	2.6	Grey	Grey	Box of 10

LOCKADO™ Clip

Product Number	Clip Max. Span Width mm	Length mm	Clip Angle	Instrument Ø mm	Grip Colour	Covering	Box Size
LOCK-C-26-195-C	8	1950	135°	2.6	Pink	Pink	Box of 10
LOCK-C-26-230-C	8	2300	135°	2.6	Pink	Pink	Box of 10
LOCK-D-26-195-C	11	1950	135°	2.6	Blue	Blue	Box of 10
LOCK-D-26-230-C	11	2300	135°	2.6	Blue	Blue	Box of 10
LOCK-F-26-195-C	16	1950	135°	2.6	Yellow	Yellow	Box of 10
LOCK-F-26-230-C	16	2300	135°	2.6	Yellow	Yellow	Box of 10
